KES FREEspace mini E black
Product range code
410638
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
- Base price per set
- 25,5611 EUR 30,929 EUR incl. VAT
-
> S In stockOnly in central warehouse
- Buy
- Brand
- Kesseböhmer
- Group code
- 1010030101
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 5 set
Description and parameters

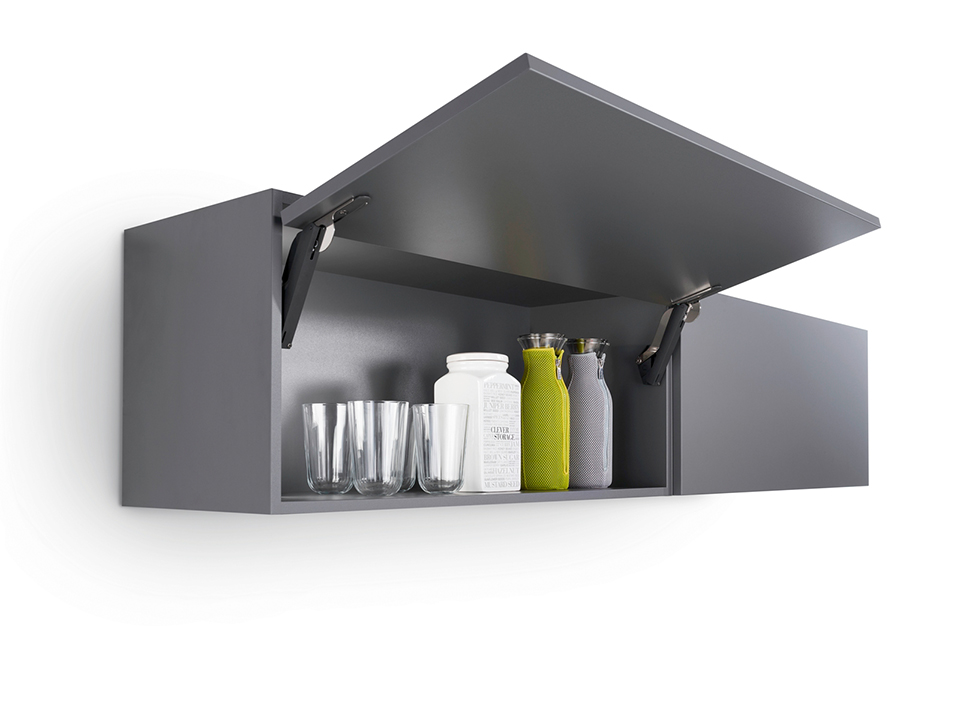

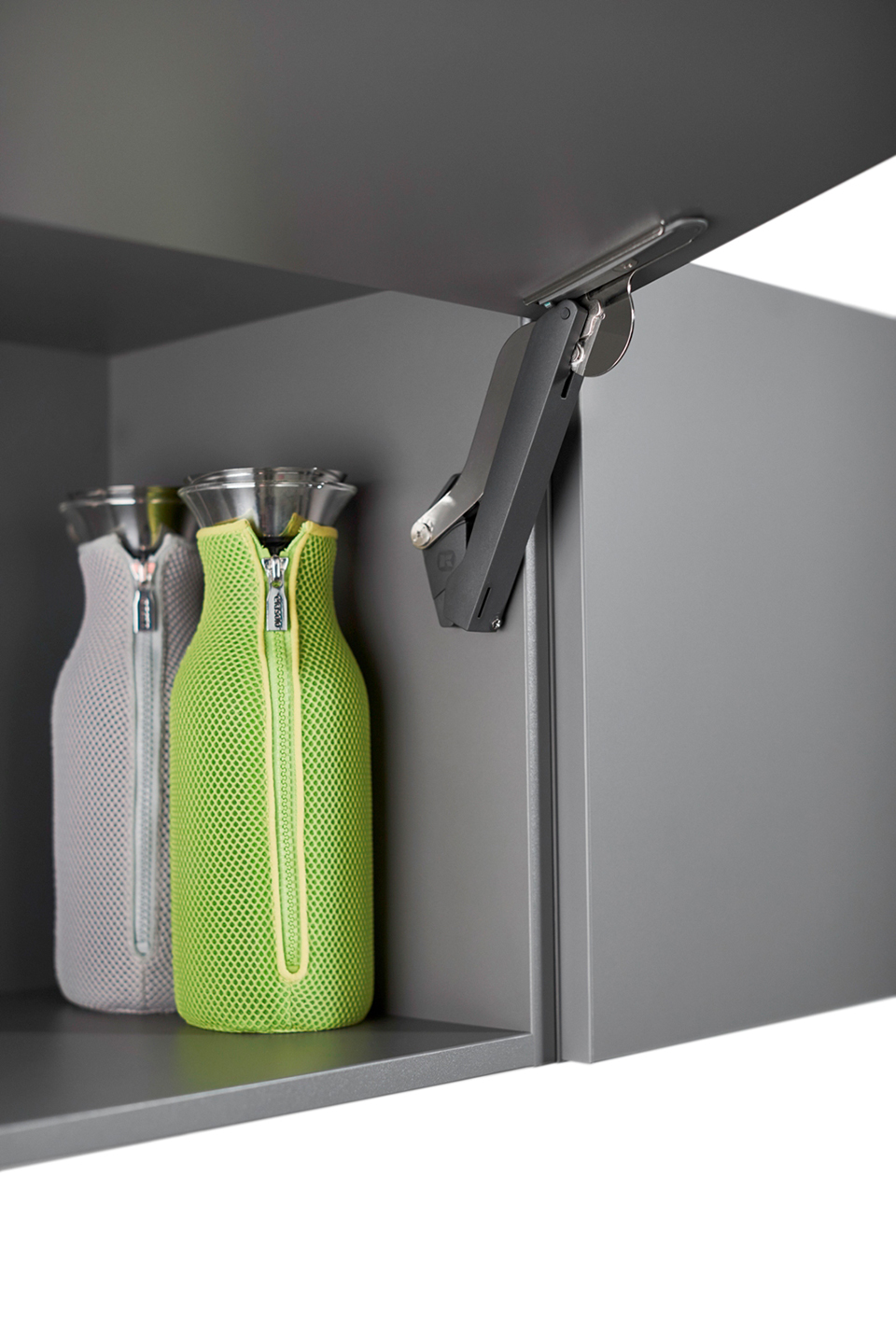

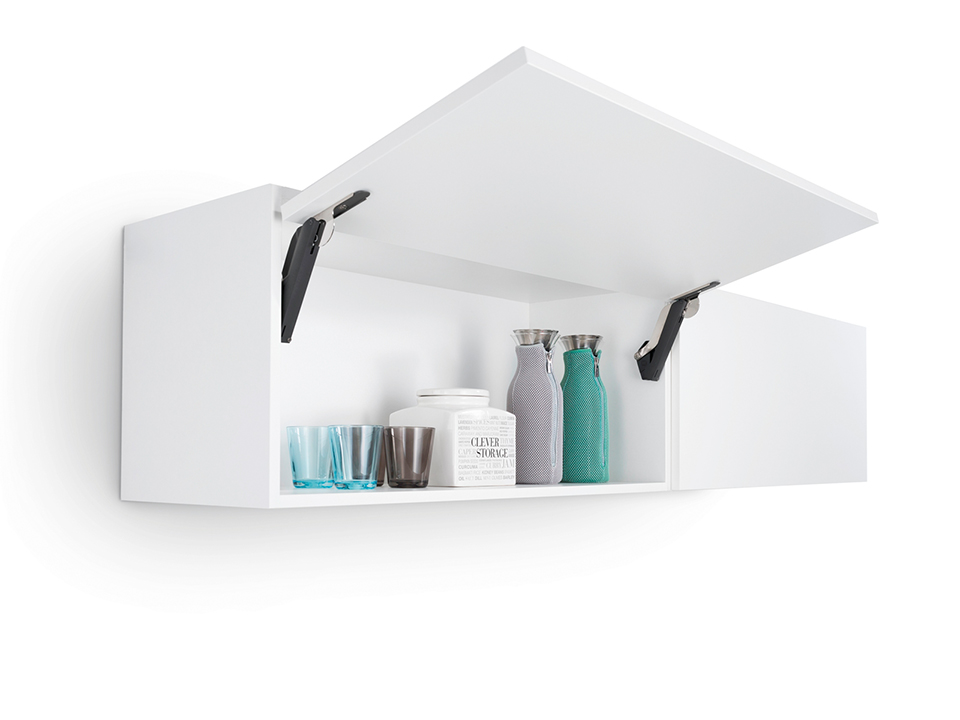

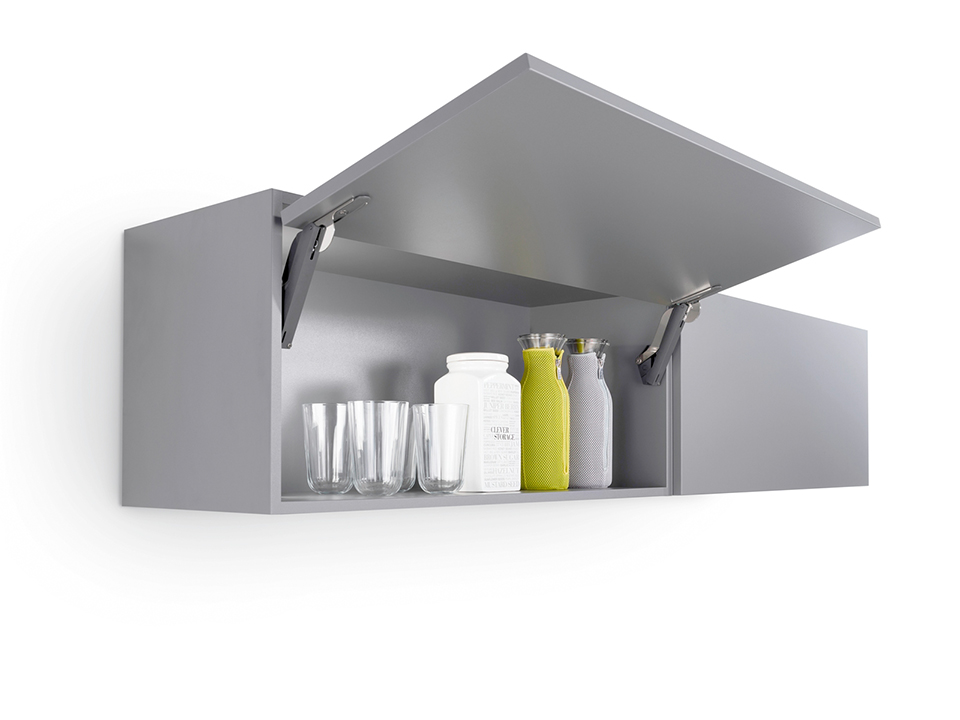

Complete set for hinged top cabinets without using hinges with minimalist hardware dimensions. Headboard height 200-650mm, width up to 1800mm. Integrated limiter of the opening angle 107°=>90°.
For mounting on wide aluminum frames (min. 45mm) it is necessary to use the front fitting set 410701.

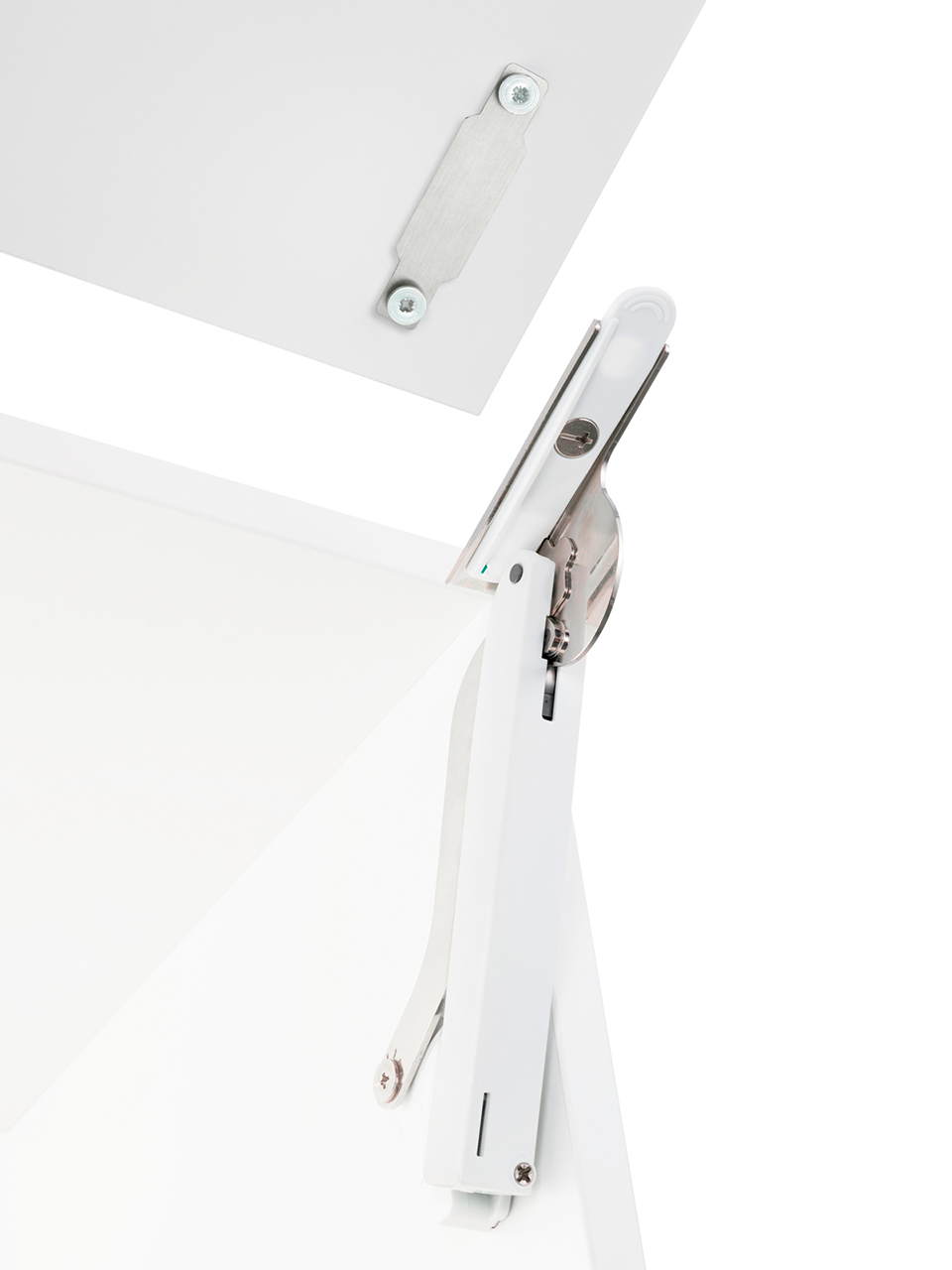

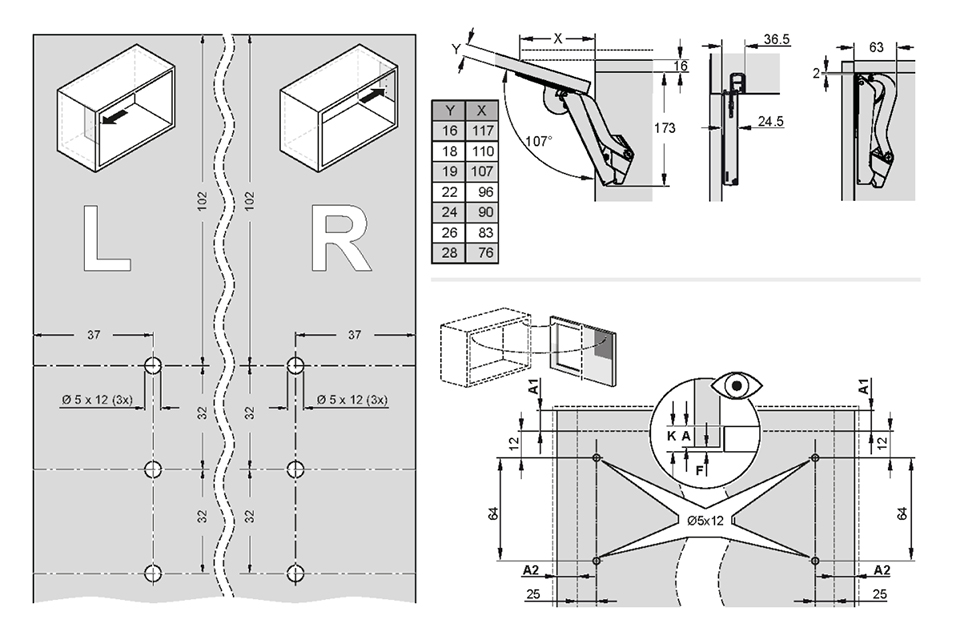

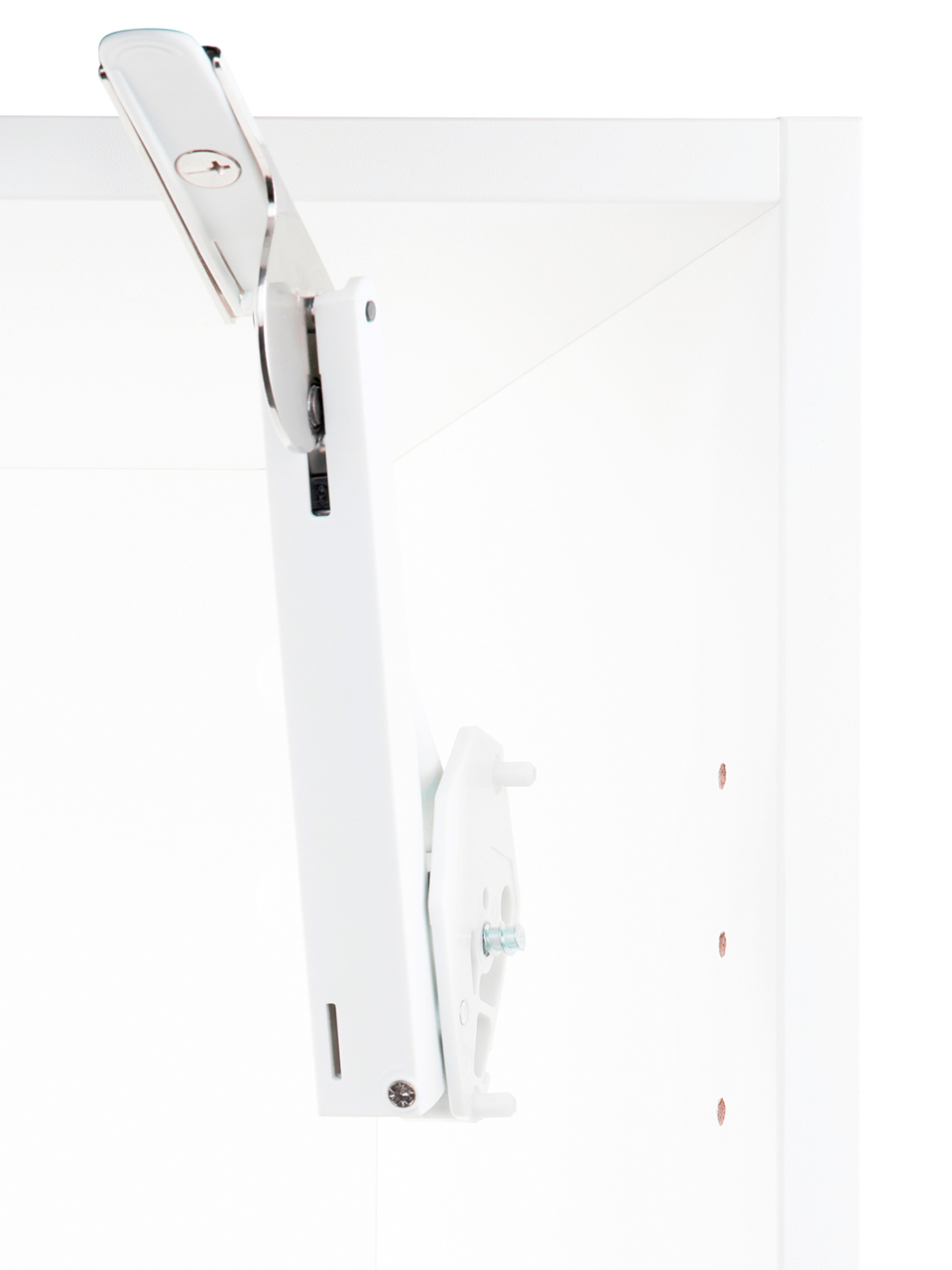

Easy installation - 3 holes of 5mm are drilled on each side of the body (2× positioning pin, 1× euro screw). Tool-free installation of the ClickFix front.
The set includes:
- left and right hinge
- front fittings with pre-assembled euro screws
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Colour | Black |
| Design | Damped |
| Height of body (mm) | 200 - 650 |
| Type of front side | Wood |
