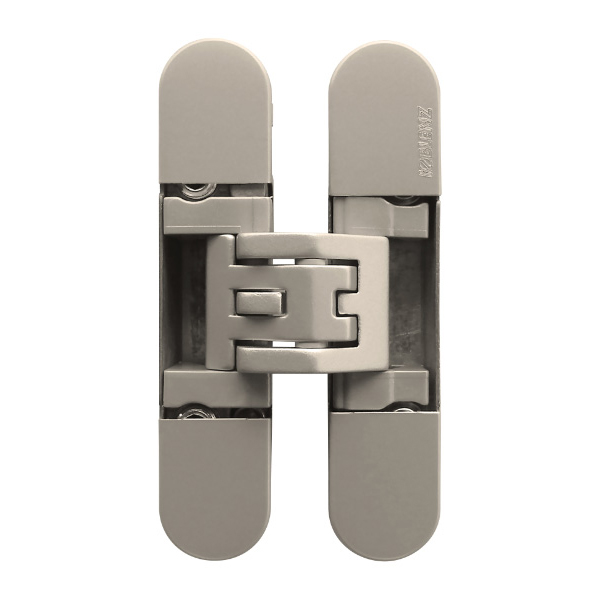

KK-Door hinge Kubica 6400 satin nickel (30kg)
Product range code
267703
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Alternatives

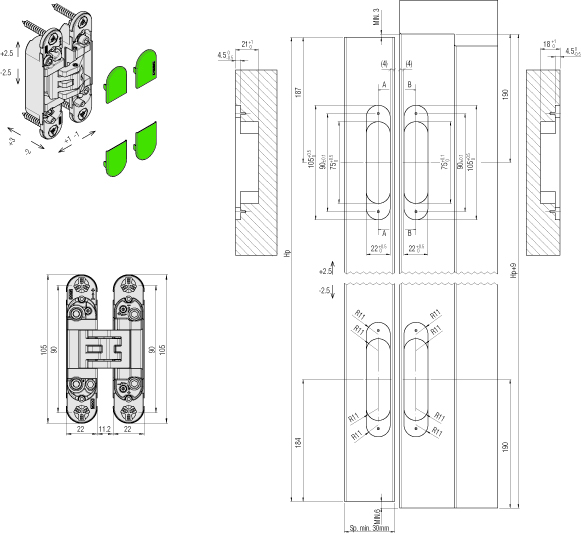

Hinge for rebateless doors with 3D adjustment. height and front +/- 3mm, side +/- 1.5mm. The maximum load capacity of the door is 30 kg for 2 pieces of hinges, 45 kg for 3 hinges. The minimum door thickness is 30 mm. Optional accessories are brackets for cladding or steel door frames. Mounting template 256045 (frame) + 268077 (inserts)
Related documents
Technical descriptionParameters
| Parameter | Value |
|---|---|
| Colour | Satin nickel |
| Load capacity (kg) | 30 |
| Type of door hinge | Non-rebated |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
267620 |
>
S
In stock
|
1 pcs / 18 pcs |
22,8933 EUR
/ pcs
27,7009 EUR incl. VAT
|
|
