KNAPP K363 RICON 120/40 EA one-sided connection | Démos trade a.s.
Hide product range Assortment

KNAPP K363 RICON 120/40 EA one-sided connection

Product range code 469036
Sale
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per set
22,0344 EUR 26,6616 EUR incl. VAT
> O On demand
Buy
Brand
KNAPP
Group code
107008
Unit (piece)
set
Divisibility
1 set
Packaging
25 set
Description and parameters

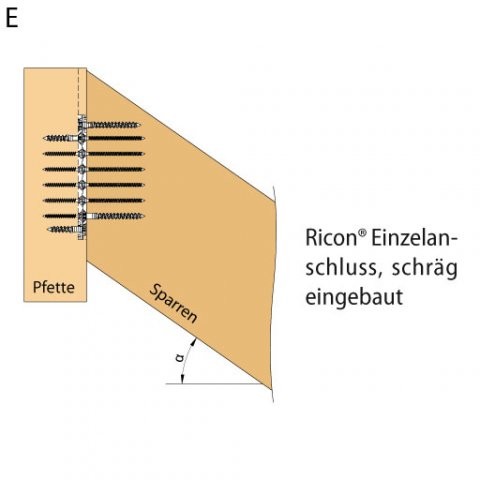

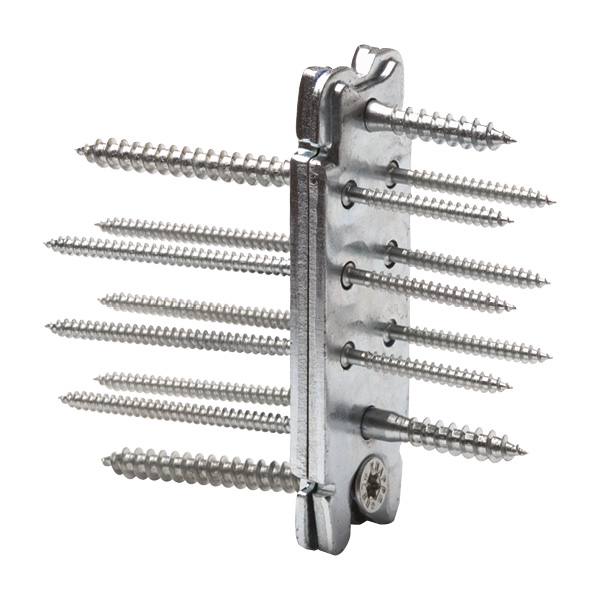

Connecting link for main and secondary beam up to 26 kN. The set consists of - 1 pair of RICON 120/40, 4 pcs of RICON CS screws 5x50 and 5x80 mm, 2 pcs of RICON CS screws 8x50 mm and 8x80 mm and 1 pc of RICON locking clip. Application for concealed connection of main and secondary beams. Thin profile - wood width from 50 mm upwards. Can be used on all wooden materials, steel or concrete. High degree of prefabrication - fast and precise assembly right on site. The elements are connected together without screwing. Setting the distance between joints while maintaining construction tolerances. Fire resistance (DIN 4102-2) thanks to 4-sided hidden fixing. Application also permissible with an intermediate layer. Disassembly and reassembly is possible several times. Increased resistance to corrosion in indoor swimming pools, riding stables, stables and agricultural buildings. ETA additionally with hardwood material.

10 dní

Related documents

Assembly instructions
