Piano hinge stainless steel (SS201), with stainless pin 900 x 30.5
Product range code
402794
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

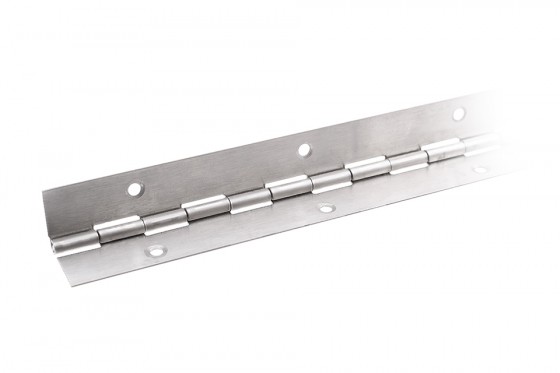

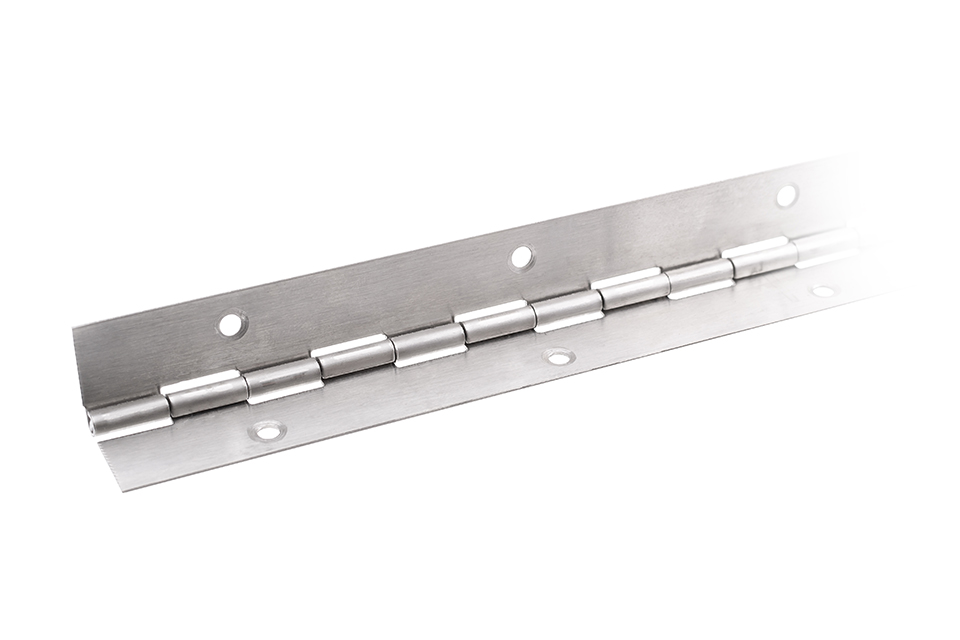

All-stainless steel piano hinge (including internal pin). Width 30.5mm, length 900mm.
Complete stainless steel material SS201 (can be welded), other markings:
- stainless steel 18/8 (Cr/Ni)
- 1.4372 (EU)
- X12CrMnNiN17-7 -5 (DIN)
- typical chemical composition [%]:
C<0.15; Si<1.00; Mn: 5.5-7.5; P<0.06; S<0.03; Cr:16-18; Ni: 3.5-5.5; N<0.25
Related documents
Technical descriptionParameters
| Parameter | Value |
|---|---|
| Angle of opening | 180 |
| Mounting into material | Screw |
