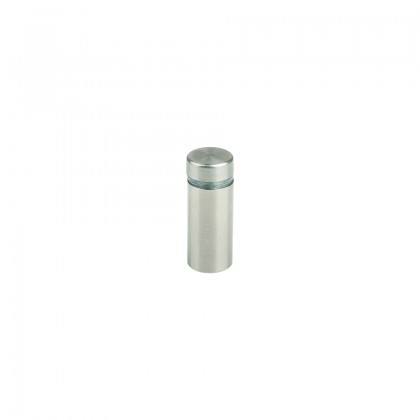

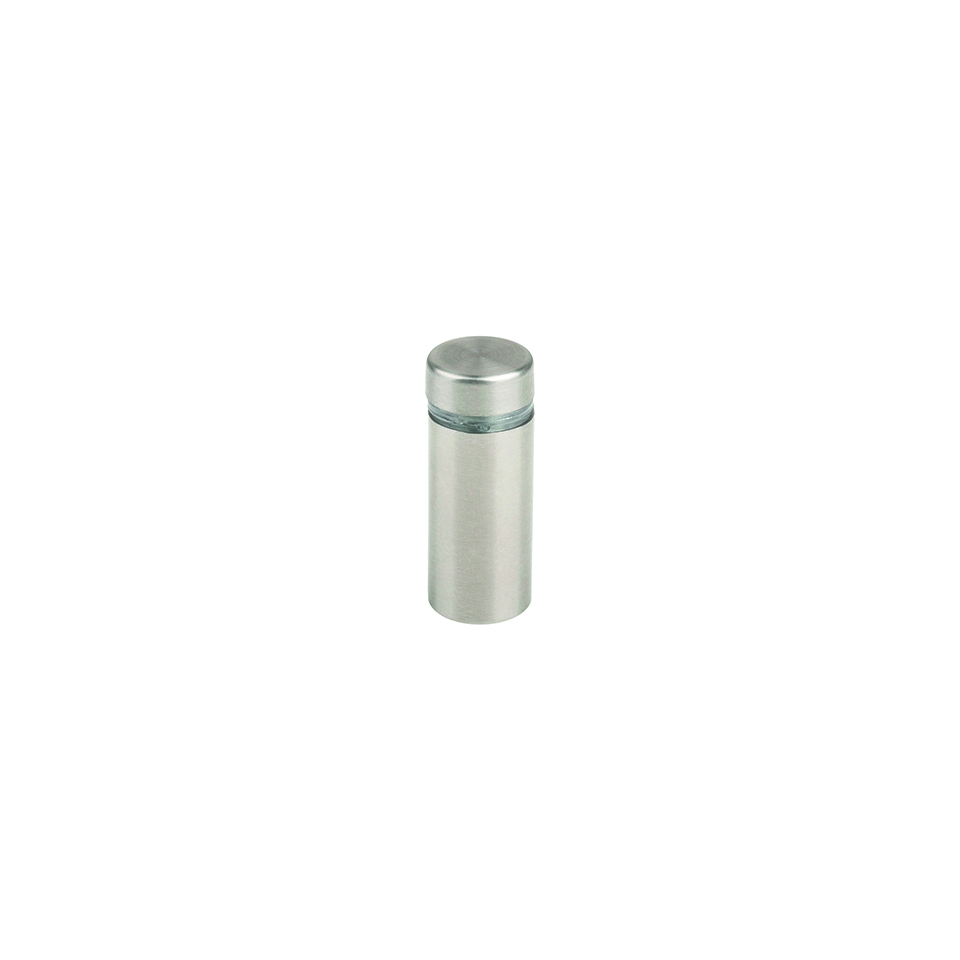

STRONG glass holder 12mm stainless steel imitation
Product range code
406713
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

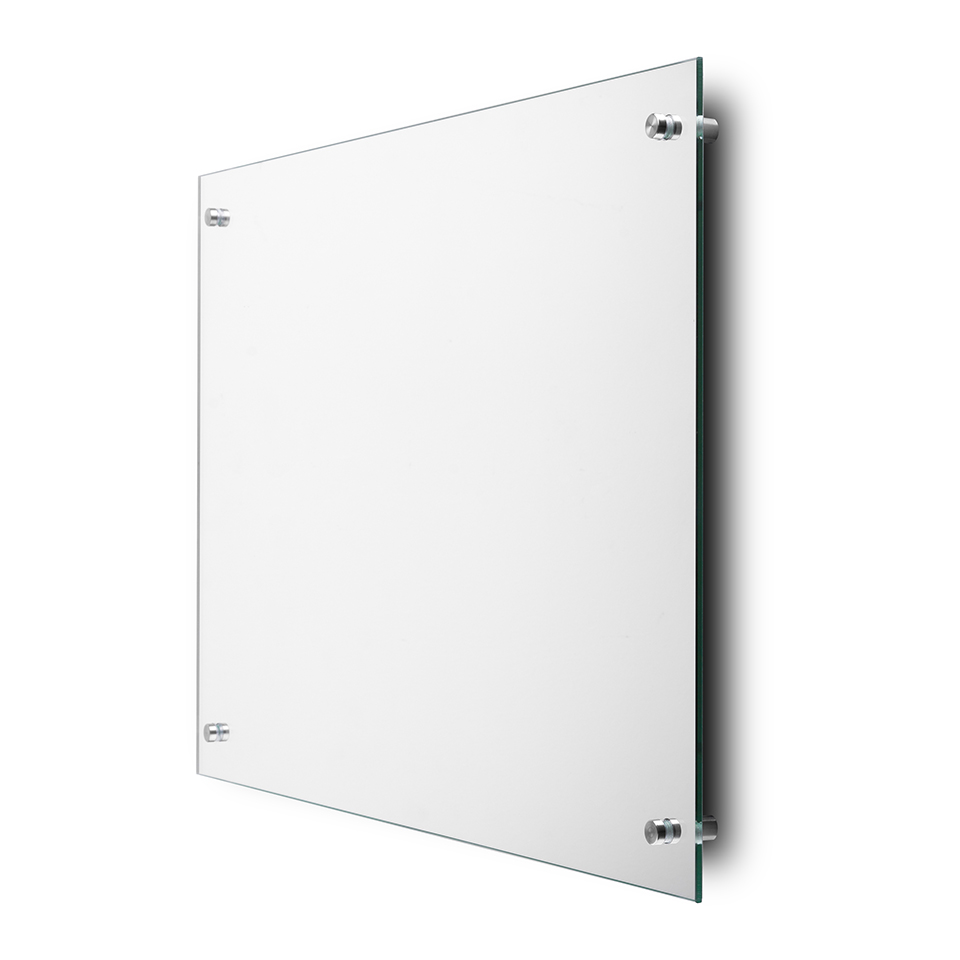

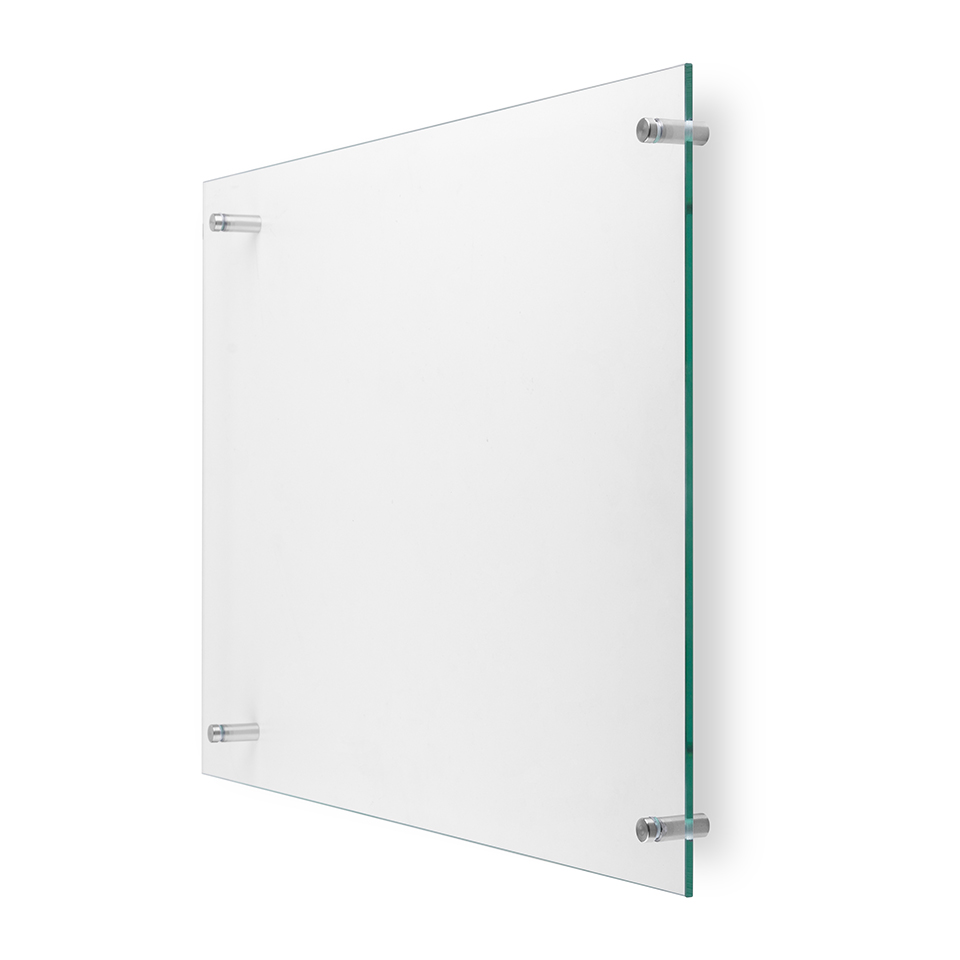

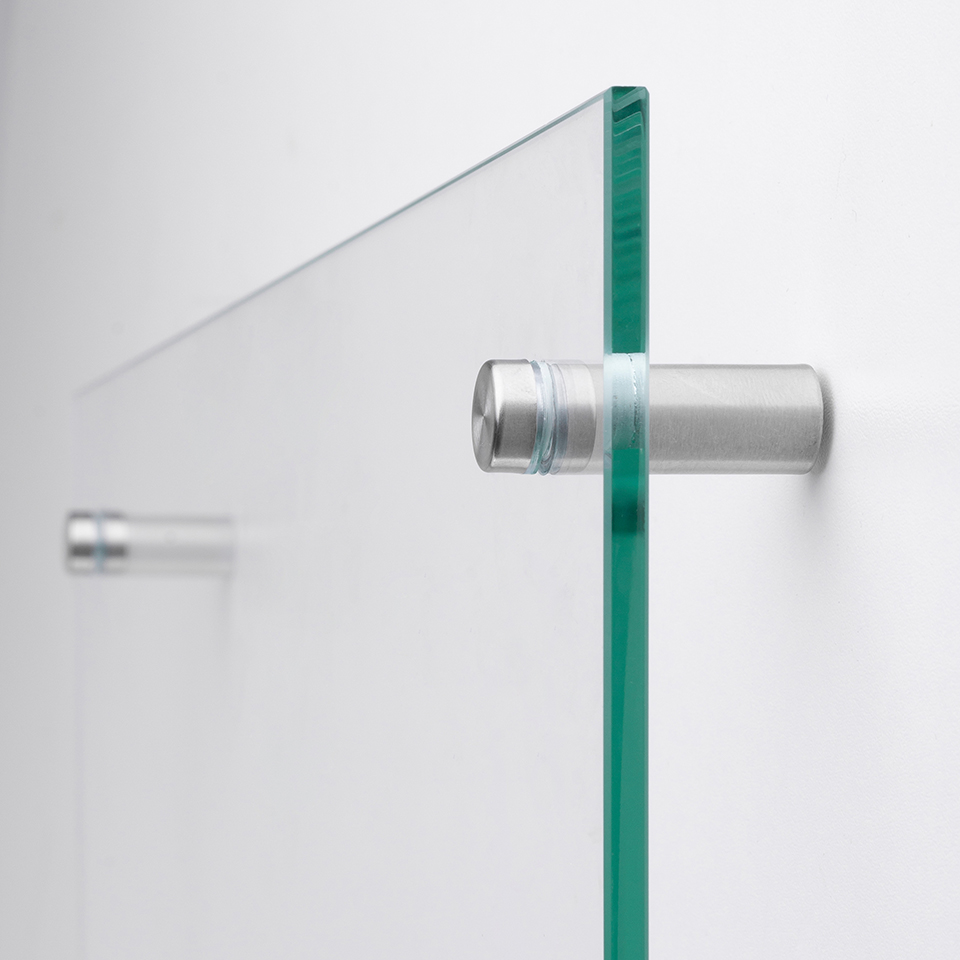

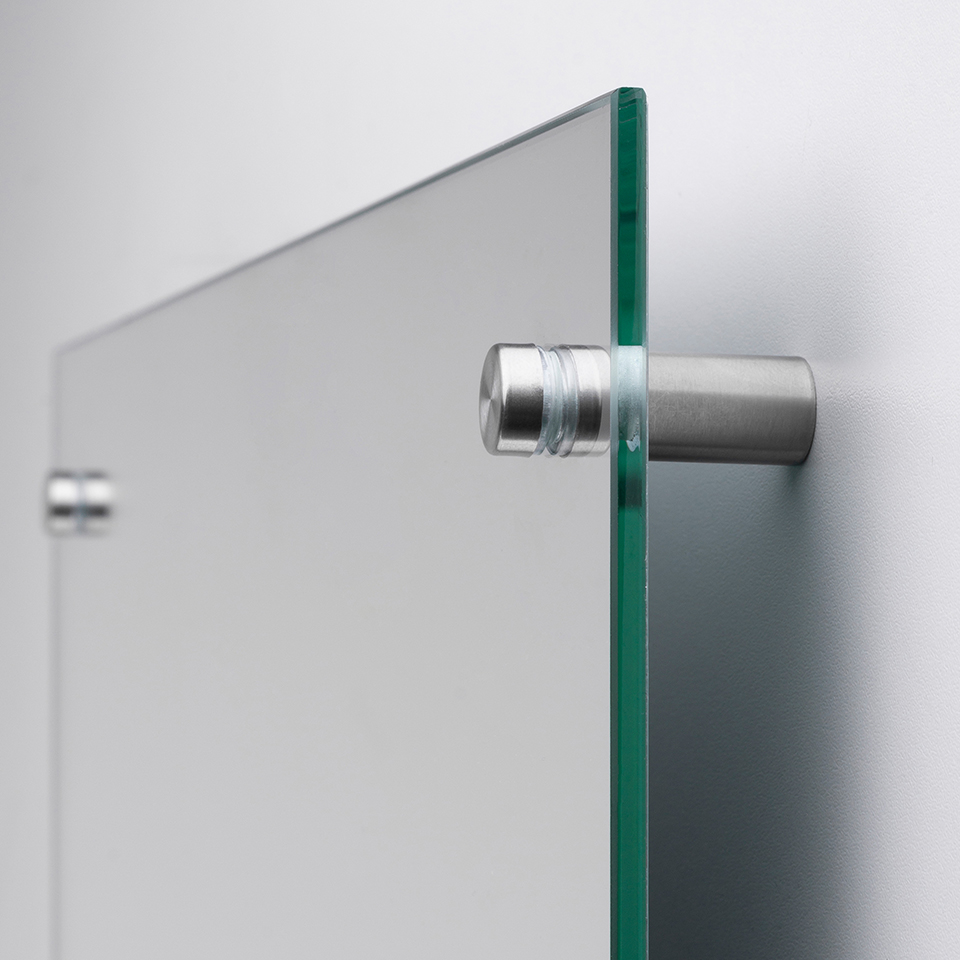

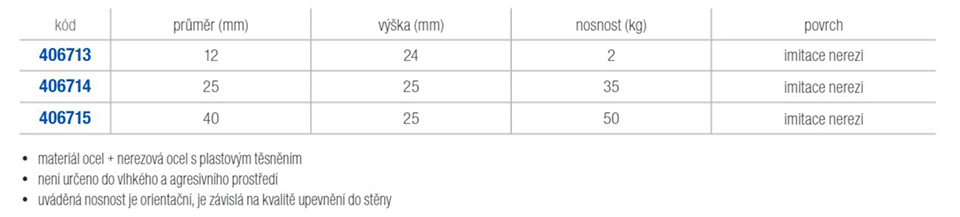

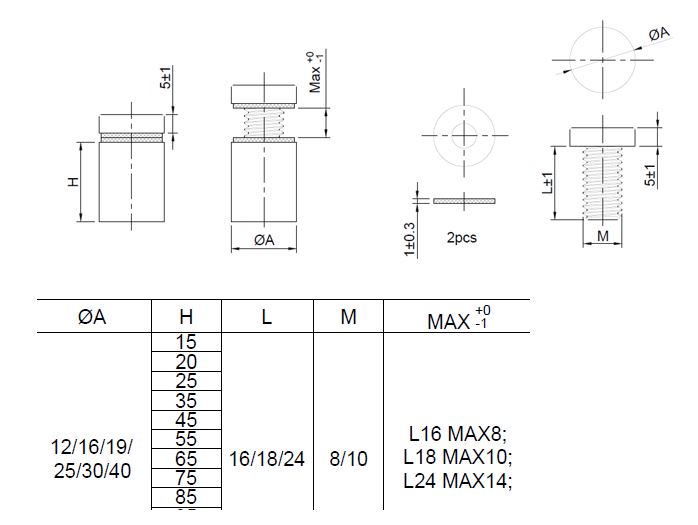

Glass or mirror holder. Material steel + stainless steel with plastic seal. Not for use in wet and aggressive environments. Load capacity of 1 piece - 2 kg. The stated load capacity is approximate, it depends on the quality of mounting to the wall. Thread M8, drilled hole diameter 8mm. Diameter of the holder - 12mm. Height of the base including gasket - 26mm, height of the cap including gasket - 5,5mm, length of the screw - 15,5mm.
Related documents
3D model (STEP)Parameters
| Parameter | Value |
|---|---|
| Determining the connecting fittings | Glass |
| Extent of connection (mm) | Max. 8 |
