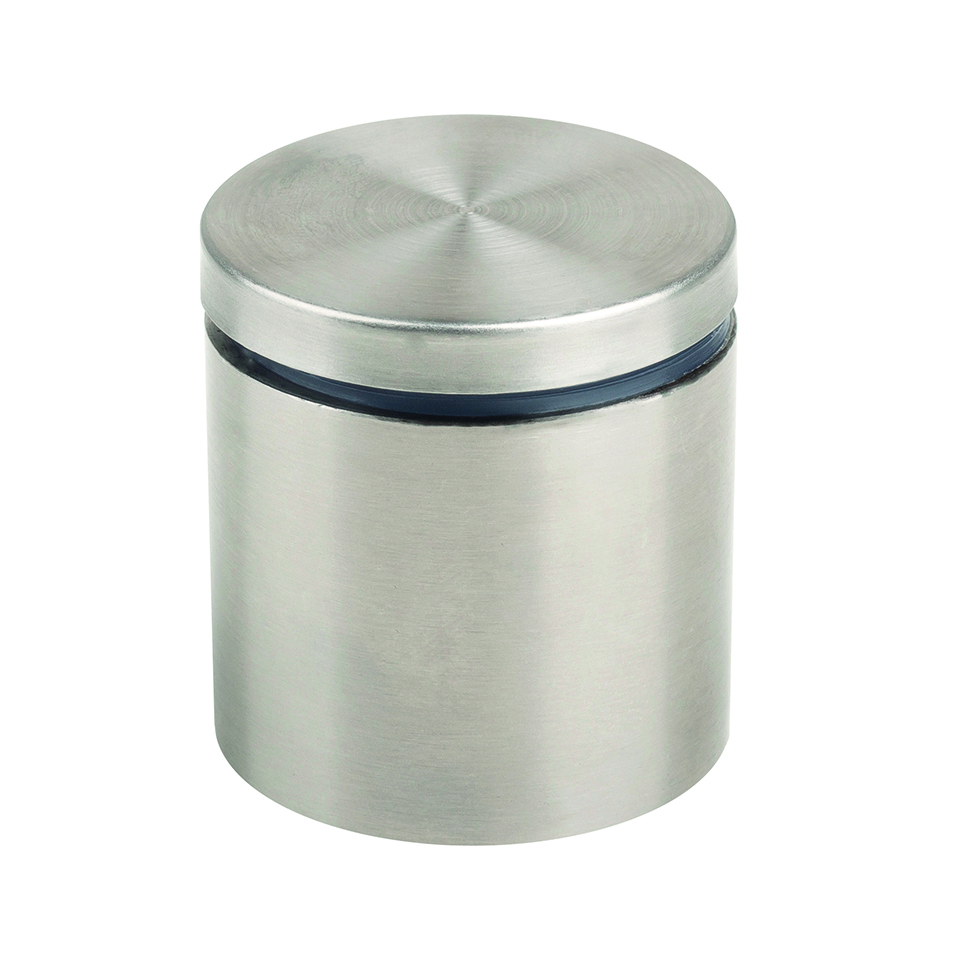

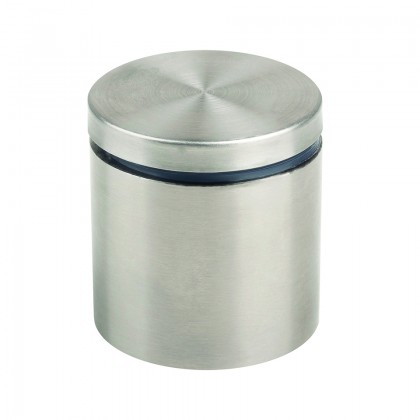

STRONG glass holder 40mm stainless steel imitation
Product range code
406715
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

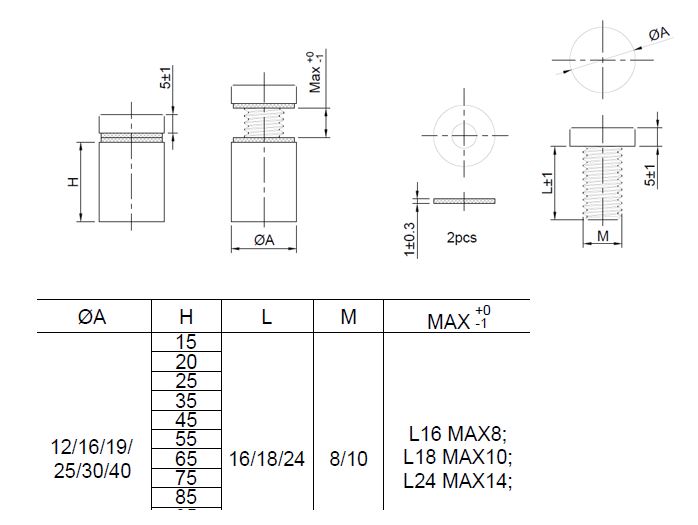

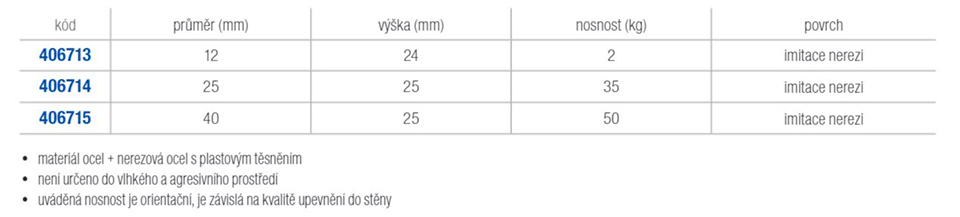

Glass or mirror holder. Material steel + stainless steel with plastic seal. Not for use in wet and aggressive environments. Load capacity of 1 piece - 50 kg. The stated load capacity is approximate, it depends on the quality of fixing to the wall. Thread M10, drilled hole diameter 10mm. Holder diameter - 40mm. Height of the base including gasket - 26,5mm, height of the cap including gasket - 7,5mm, length of the screw - 23mm.
Related documents
3D model (STEP)Parameters
| Parameter | Value |
|---|---|
| Determining the connecting fittings | Glass |
| Extent of connection (mm) | Max. 14 |
