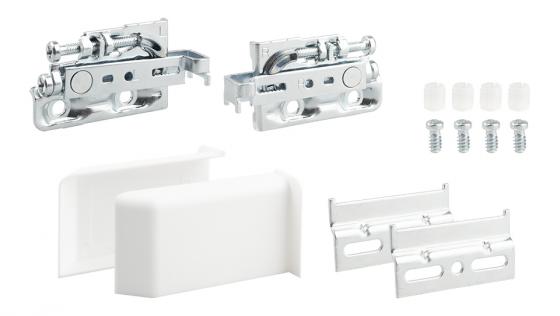

STRONG rectifying metal fittings with white caps

Product range code 404459
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per set
2,1795 EUR 2,6372 EUR incl. VAT
> S In stock
Buy
Brand
Strong
Group code
1010010201
Unit (piece)
set
Divisibility
1 set
Packaging
100 set
Description and parameters

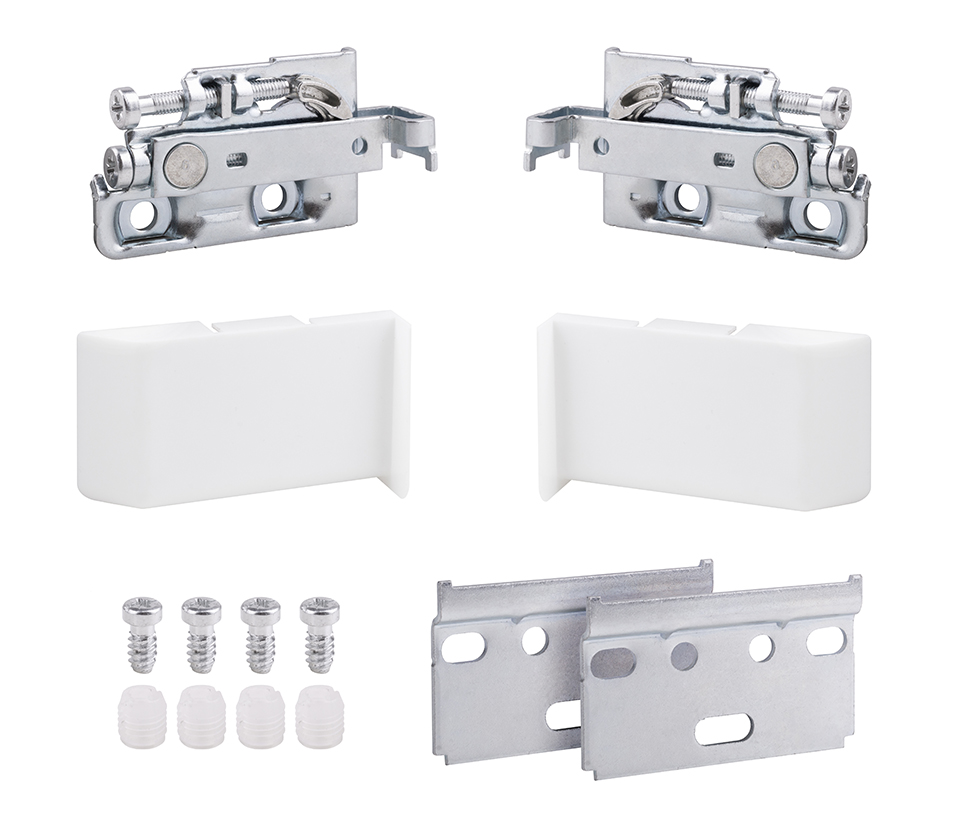

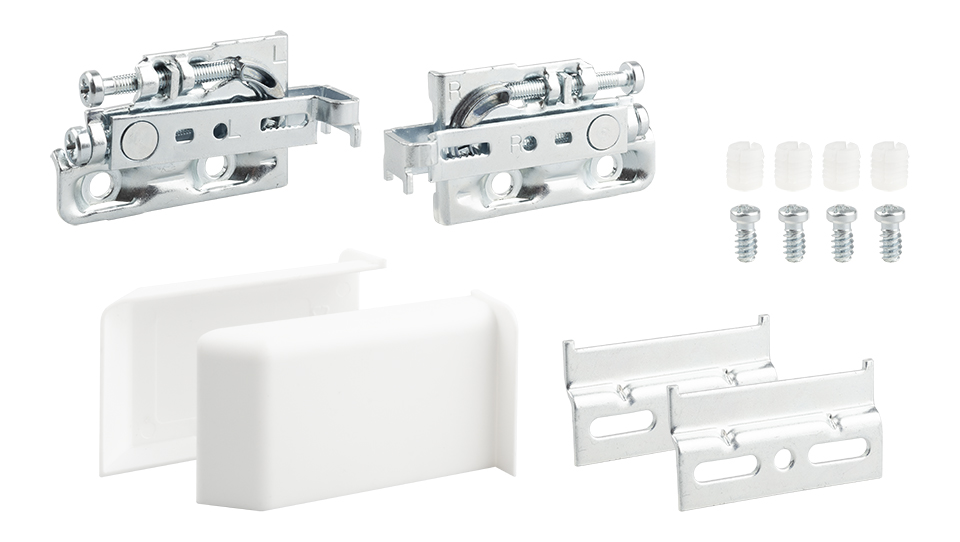

Rectification fitting with white plastic cover, load capacity 150kg per pair. Set includes. - Pair of metal hinge fittings. - Pair of white plastic caps. - 2 pcs of galvanized hinge plates 70x42x6mm - 2mm thick. - 4pcs of euro screws. - 4pcs of dowels for 10mm hole. Height adjustment +/- 8mm, depth adjustment +/- 10mm. On some pieces, the included dowel may rotate when screwing in the included euro screws. It is advisable to consider installation without using dowels using only the Euro screws in pre-drilled holes 5mm diameter. The load capacity with this installation method is max. 80kg/pair. Another option is to drill the holes in the body to a diameter of 9.5mm.

Related documents

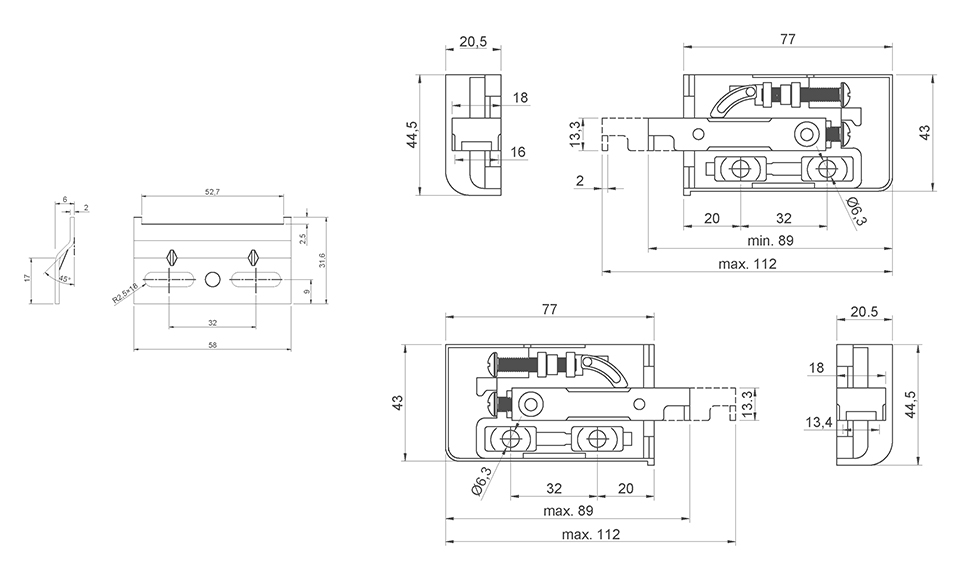

Technical description

Parameters

Parameter Value
Mounting into material Euroscrew
