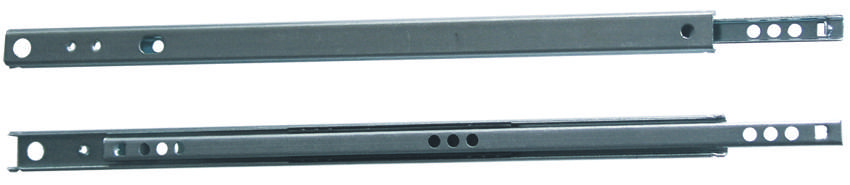

StrongBall S5 ball bearing partial extension slide 17/182mm 10kg

Product range code 92601
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per pair
0,46 EUR 0,5566 EUR incl. VAT
> S In stock
Buy
Brand
Strong
Group code
10200301
Unit (piece)
pair
Divisibility
1 pair
Packaging
100 pair
Description and parameters

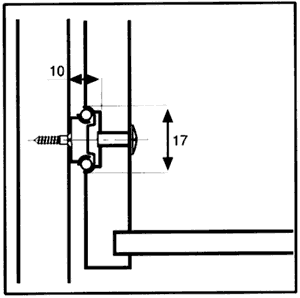

Travel height 17 mm, Travel width 10 mm. Length after slide out 315 mm.

Installation: A 17mm wide groove must be milled into the drawer. The slide is screwed onto the cabinet first. A hole must be drilled in the drawer opposite the threaded hole. The drawer is then inserted into the body on the screwed in slides and the slide is fixed inside the drawer with a metric threaded screw against forward/reverse movement.

The Hettich KA 1730 alternatives shown are not 100% replacements for the 1:1 drawer due to the different drawer design, a trial fitting is recommended. For Hettich drawers, the basic selection parameter is the "drawer length" value, i.e. the length of the drawer side with the groove milled out.

Related documents

Assembly instructions

Parameters

Parameter Value
Length (mm) 182
Load capacity (kg) 10
Movement of extended drawer Without damping
Type of extension guide Partial extension
Alternatives
Title Code Availability Divisibility/
packaging
Basic price per unit
HETTICH 79054 KA 1730/200 ball slide HETTICH 79054 KA 1730/200 ball slide 106758
> S In stock
1 set / 20 set
2,7039 EUR
/ set
3,2717 EUR incl. VAT
HETTICH 79055 KA 1730/250 Ball slide HETTICH 79055 KA 1730/250 Ball slide 106760
> S In stock
1 set / 20 set
2,7906 EUR
/ set
3,3767 EUR incl. VAT
StrongBall S5 ball partial extension 17/182x16.6 Slide StrongBall S5 ball partial extension 17/182x16.6 Slide 504713
> S In stock
1 pair / 100 pair
0,78 EUR
/ pair
0,9438 EUR incl. VAT
