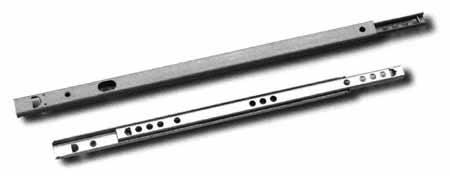

StrongBall S5 ball bearing partial extension slide 17/406mm 10kg

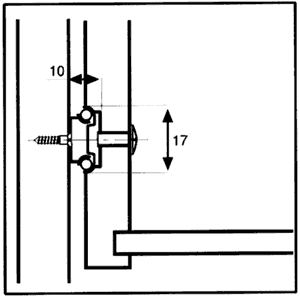

Travel height 17 mm, Travel width 10 mm. Length after slide out 700 mm.
Installation: A 17mm wide groove must be milled into the drawer. The slide is screwed onto the cabinet first. A hole must be drilled in the drawer opposite the threaded hole. The drawer is then inserted into the body on the screwed in slides and the slide is fixed inside the drawer with a metric threaded screw against forward/reverse movement.
The Hettich KA 1730 alternatives shown are not 100% replacements for the 1:1 drawer due to the different drawer design, a trial fitting is recommended. For Hettich drawers, the basic selection parameter is the "drawer length" value, i.e. the length of the drawer side with the groove milled out.
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Length (mm) | 406 |
| Load capacity (kg) | 10 |
| Movement of extended drawer | Without damping |
| Type of extension guide | Partial extension |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
104881 |
>
S
In stock
|
1 set / 20 set |
2,9644 EUR
/ set
3,5869 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
104012 |
>
S
In stock
|
1 set / 20 set |
3,3549 EUR
/ set
4,0594 EUR incl. VAT
|
|
|
