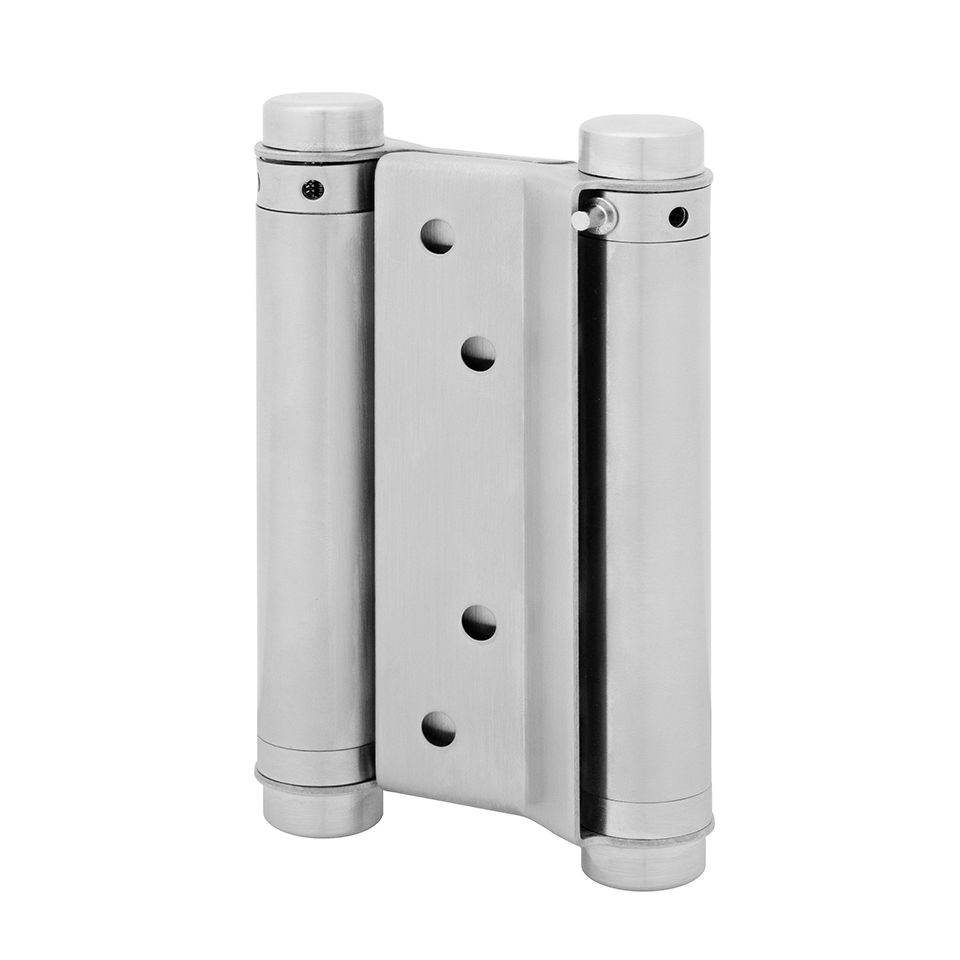

StrongHinges hinge (western) stainless steel 125mm
Product range code
392259
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

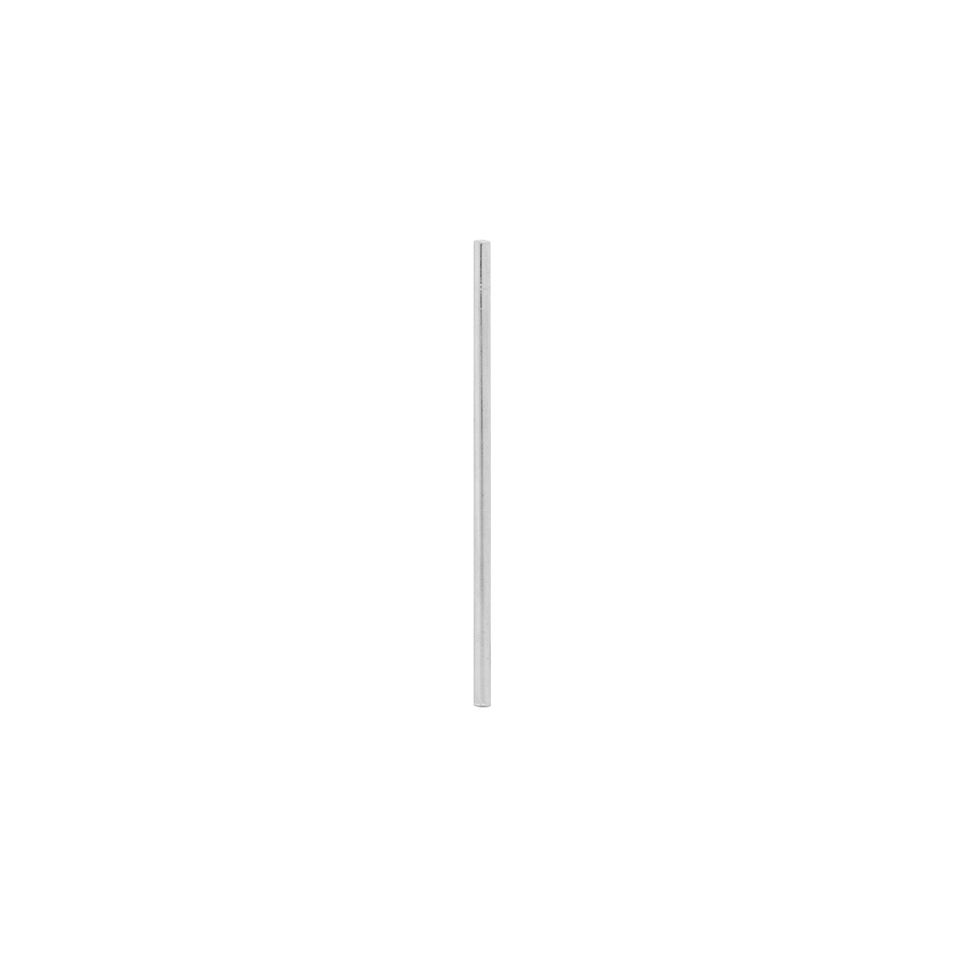

Hinges for swing doors. Hinge height 125mm, possibility to adjust the closing spring. The package includes two pieces of hinges and a bar for adjusting the spring.
The maximum weight of the door leaf when nailing 3 pieces of hinges is 30kg.
Usage:
For doors that return to their original position after opening positions - westen bars, pet doors, hospitals and others.
SS201 stainless steel material (can be welded), other markings:
- stainless steel 18/8 (Cr/Ni)
- 1.4372 ( EU)
- X12CrMnNiN17-7-5 (DIN)
- typical chemical composition [%]:
C<0.15; Si<1.00; Mn: 5.5-7.5; P<0.06; S<0.03; Cr:16-18; Ni: 3.5-5.5; N<0.25
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Angle of opening | 180 |
| Mounting into material | Screw |
