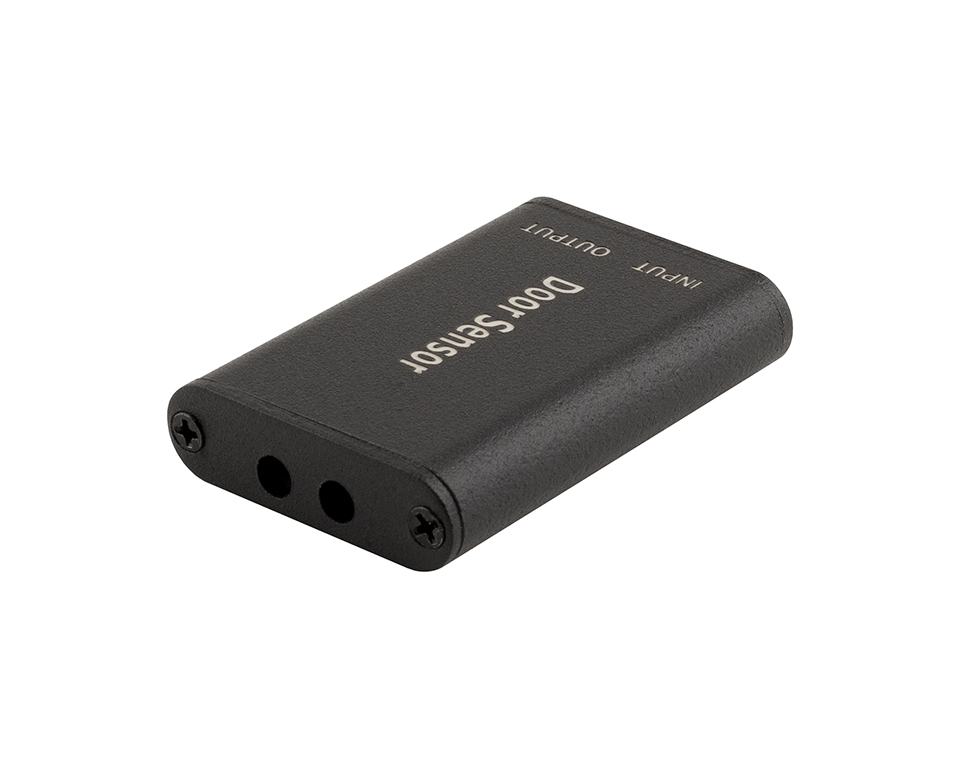

StrongLumio door sensor aluminum 12/24V 48/96W 4A black connectors Mini
Door switch.
It is used to control the lighting when the door is opened. Opening the door / clearing the space in front of the switch will turn on the lighting, closing / covering it will turn off the lighting. Possibilities of connection and use see assembly instructions below.
Voltage and power: 12V (48W)/24V (96W) DC - direct current
Maximum current: 4 A

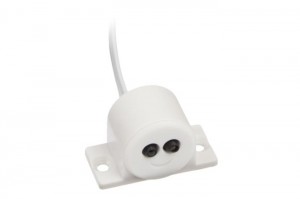

Detection range: <10 cm Caution, dark surfaces significantly reduce the range, to increase the range it is possible to stick a 40 mm white cap opposite the sensor (code 283272)
Type of connector: MINI
Installation
First switch off the power supply to the transformer. Stick the switch in a suitable place, as close as possible to the door leaf so that when opened it does not interfere with the two protrusions and there is a free space in front of them min. 10 cm. Connect the cable labeled OUTPUT to the light, LED strip, etc.. Connect the cable labeled INPUT to the transformer / transformer switchboard. Only then connect the transformer to the power supply!. Attention, intended only for voltage 12 V or 24 V DC (direct current). We recommend using the shortest possible cables due to losses and possible heating.

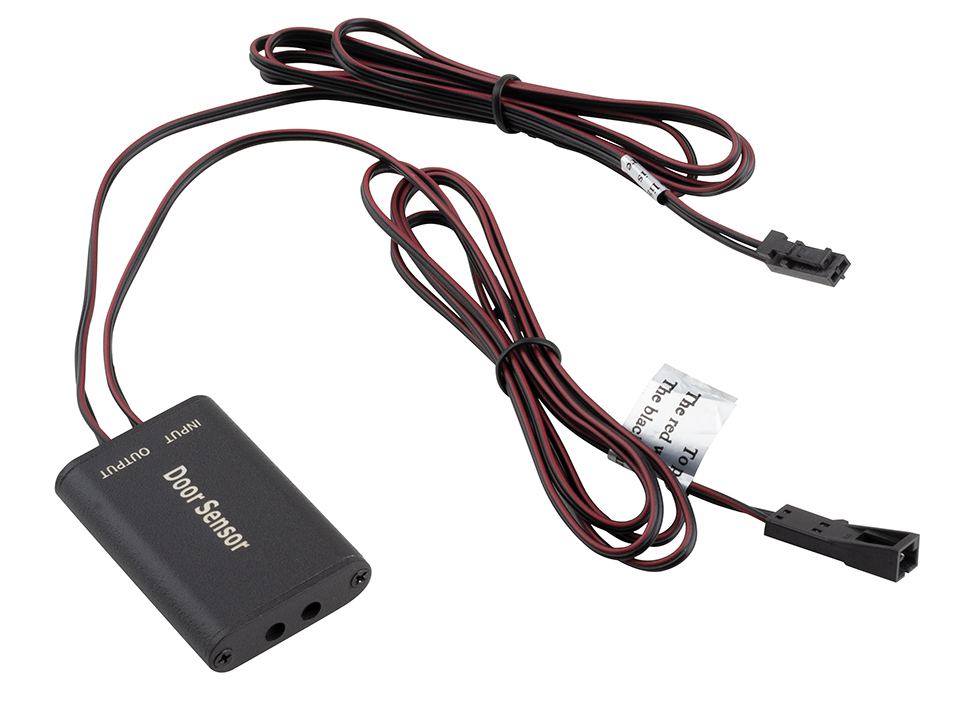

Setting delay or intensity is not possible. Cable length - 2x 1m. 285110 TM-extension cable 1.8m MINI connector can be used for extension. To connect the sensor/switch with one LED strip, you must use the Mini connection cable - 285094 TM-connection cable 1.8 m MINI connector. In the case of connecting several LED strips or points (max. 6 pcs., cable with Mini connector) to one sensor/switch, it is necessary to use the switchboard 356328 SAL-switchboard LED 6x MINI - MINI connector 0.25m. To connect one sensor to the Strong transformer, it is necessary to use the connection cable 342541 STR-prop.kabel kul.kon (Jack)-MINI (female). To connect 2 - 6 sensors to one Strong transformer, it is necessary to use the switchboard 285093 SAL-switchboard LED 6x MINI connector - Jack 0.25m.
Product details on the catalog page.
Related documents
Assembly instructionsParameters
Parameter | Value |
---|---|
Maximum power (W) | 48/96 |
Output voltage (V) | 12/24 |
Type of sensor_LED | Door |
