StrongLumio door sensor aluminum 12/24V 48/96W 4A silver connectors Mini
Door switch.
It is used to control the lighting when the door is opened. Possibilities of connection and use see assembly instructions below. Opening the door/clearing the space in front of the switch will turn on the lighting, closing/covering it will turn off the lighting.
Voltage and power: 12V (48W)/24V (96W) DC - direct current
Maximum current: 4 A
Detection range: <10 cm Attention, dark surfaces significantly reduce the range, to increase the range it is possible to stick a 40 mm white cap opposite the sensor, for example (code 283272)
Type of connector: MINI
Installation

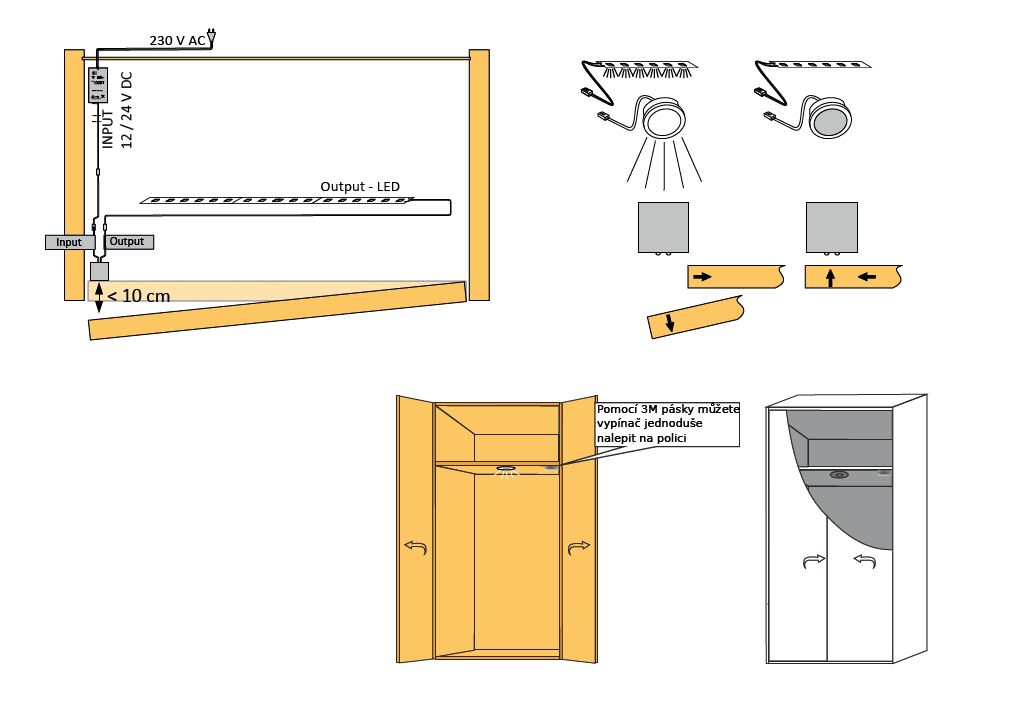

First switch off the power supply to the transformer. Stick the switch in a suitable place, as close as possible to the door leaf so that when opened it does not interfere with the two protrusions and there is a free space in front of them min. 10 cm. Connect the cable labeled OUTPUT to the light, LED strip, etc.. Connect the cable labeled INPUT to the transformer / transformer switchboard. Only then connect the transformer to the power supply!. Attention, intended only for voltage 12 V or 24 V DC (direct current). We recommend using the shortest possible cables due to losses and possible heating.
Setting delay or intensity is not possible. Cable length - 2x 1m. 285110 TM-extension cable 1.8m MINI connector can be used for extension. To connect the sensor/switch with one LED strip, you must use the Mini connection cable - 285094 TM-connection cable 1.8 m MINI connector. In the case of connecting several LED strips or points (max. 6 pcs., cable with Mini connector) to one sensor/switch, it is necessary to use the switchboard 356328 SAL - switchboard LED 6x MINI - MINI connector 0.25m. To connect one sensor to the Strong transformer, it is necessary to use the connection cable 342541 STR-prop.kabel kul.kon (Jack)-MINI (female). To connect 2 - 6 sensors to one Strong transformer, it is necessary to use the switchboard 285093 SAL-switchboard LED 6x MINI connector - Jack 0.25m.
Product details on the catalog page.
Parameters
Parameter | Value |
---|---|
Maximum power (W) | 48/96 |
Output voltage (V) | 12/24 |
Type of sensor_LED | Door |
