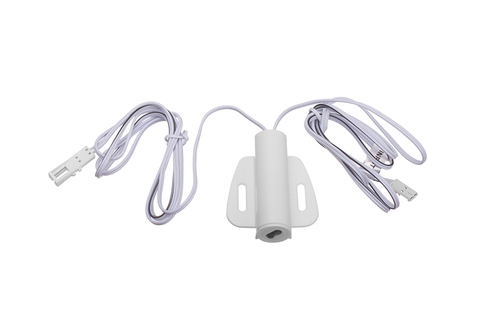

StrongLumio door sensor plastic, 12-24V, 4A, Mini connectors, white

Product range code 374369
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per pcs
15,7926 EUR 19,109 EUR incl. VAT
> S In stock
Buy
Brand
Strong
Group code
11000303
Unit (piece)
pcs
Divisibility
1 pcs
Packaging
1 pcs
Description and parameters

Door switch.

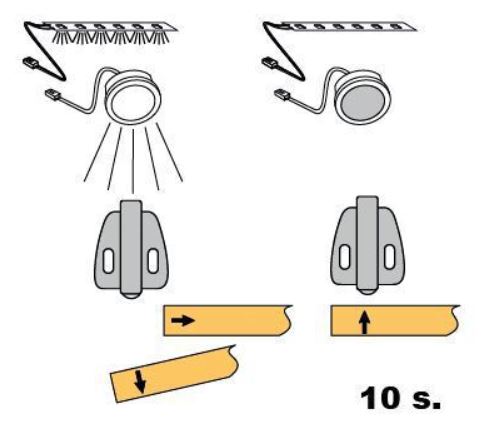

It is used to control the lighting when the door is opened. Opening the door / clearing the space in front of the switch will turn on the lighting, closing / covering it will turn off the lighting. Possibilities of connection and use see assembly instructions below.
Voltage: 12 V / 24 V DC - direct current
Maximum current: 4 A
Detection range: <10 cm Attention, dark surfaces significantly reduce the range, for to increase the range, it is possible to stick opposite the sensor, for example, a 40 mm white cap (code 283272)
Connector type: MINI. Cable length - 2x 1m. 285110 TM-extension cable 1.8m MINI connector can be used for extension.
Installation
First switch off the power supply to the transformer. Screw the switch to a suitable place, as close as possible to the door leaf so that after opening there is a free space in front of the sensor. 10 cm. Connect the cable labeled OUTPUT to the light, LED strip, etc.. Connect the cable labeled INPUT to the transformer / transformer switchboard. Only then connect the transformer to the power supply!
Caution, designed for 12 V or 24 V DC (direct current) voltage only. We recommend using the shortest possible cables due to losses and possible heating.
Setting delay or intensity is not possible. To connect the sensor/switch with one LED strip, you must use the Mini connection cable - 285094 TM-connection cable 1.8 m MINI connector. In the case of connecting several LED strips or points (max. 6 pcs., cable with Mini connector) to one sensor/switch, it is necessary to use the switchboard 356328 SAL-switchboard LED 6x MINI - MINI connector 0.25m. To connect one sensor to the Strong transformer, it is necessary to use the connecting cable 342541 STR-prop.kabel kul.kon (Jack)-MINI (female). To connect 2 - 6 sensors to one Strong transformer, it is necessary to use the switchboard 285093 SAL-switchboard LED 6x MINI connector - Jack 0.25m.

Product details on the catalog page.

Parameters

Parameter Value
Maximum power (W) 48/96
Output voltage (V) 12/24
Type of sensor_LED Door
