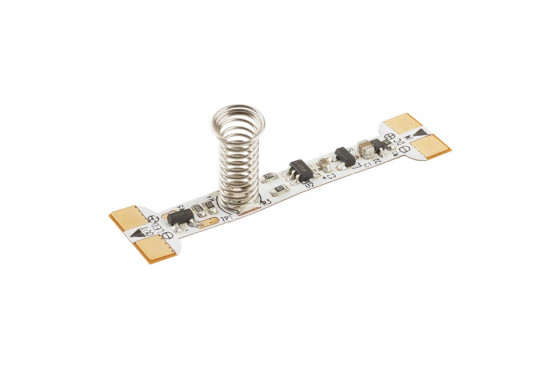

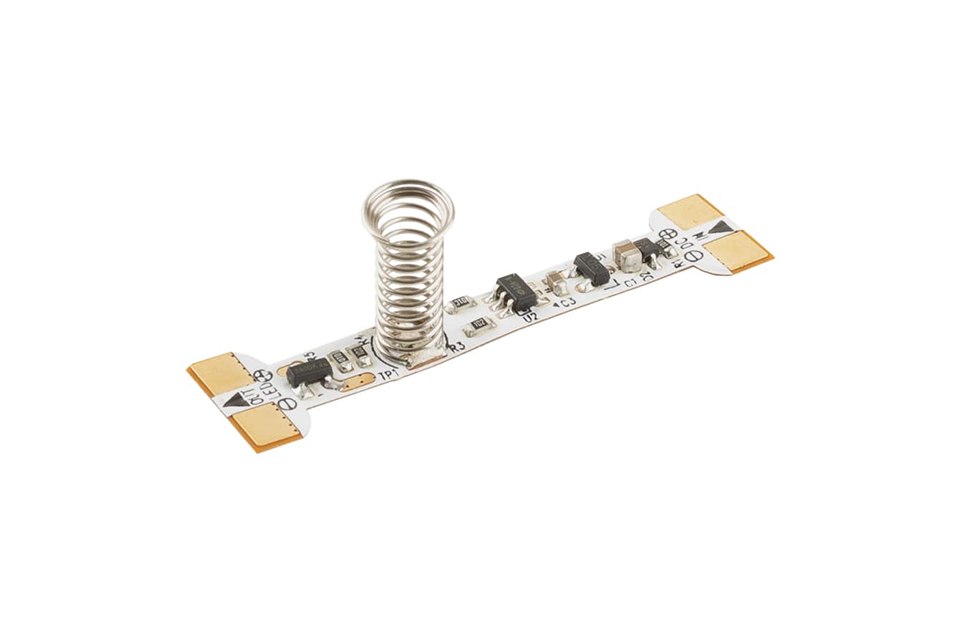

StrongLumio flexible touch switch/dimmer for aluminum profile

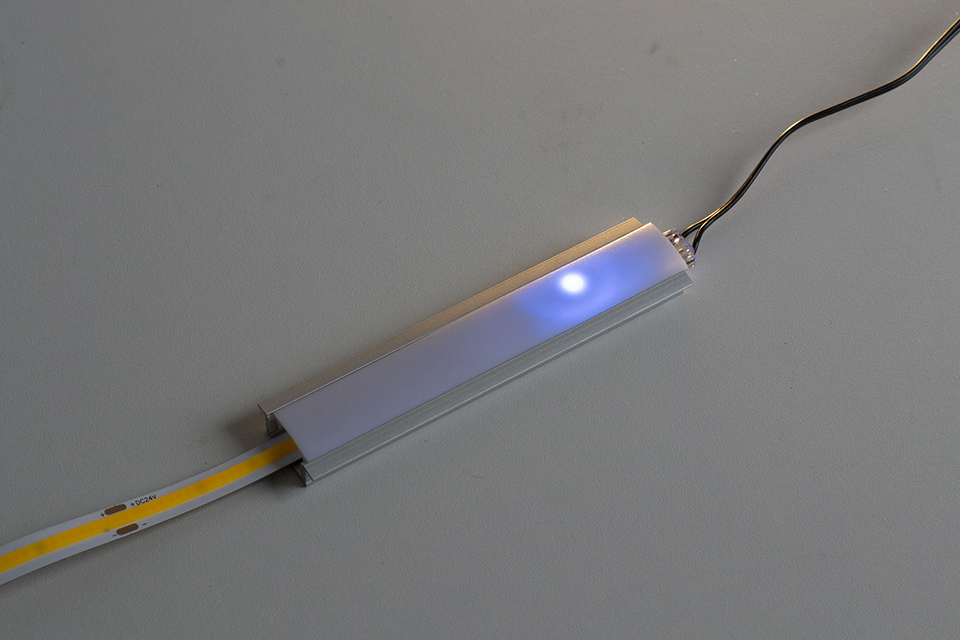

Sensor for ALU profiles. It is used to control the LED strip, by touching the glowing point we turn on / off the lighting, with a long touch it is possible to adjust the intensity of the lighting. No need to solder!
Designed for voltage 5 - 24VDC (direct current)
Max. switching current 3.5 A
Maximum switching power: 42W (12V), 84W (24V)

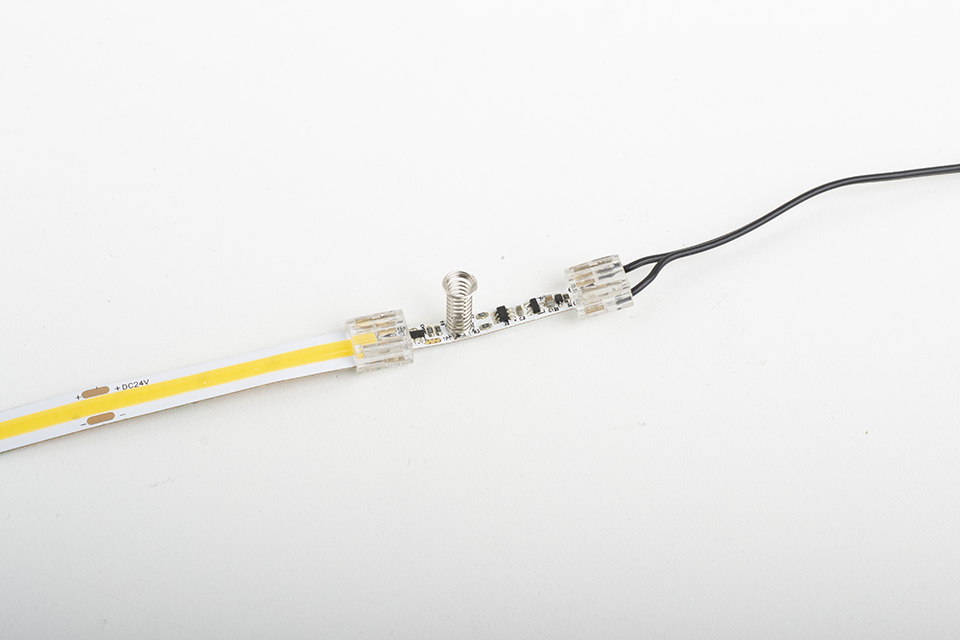

Shorten the spring as needed so that it touches the profile cap. If the spring is too long, it may come into contact with the contacts, profile, etc., resulting in malfunction or even damage to the switch. A too shortened spring can be carefully stretched. Beware of tearing, there is a risk of damage, careful handling is necessary. Especially in the case of higher power switching, the switch must be adjacent to the ALU profile for heat dissipation. It is not necessary to solder, to connect to the LED strip with a width of 8 mm and a two-line connection cable, you can use 507813 StrongLumio connector universal LED strip/two-line 8 mm.
Related documents
Assembly instructions| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
343063 |
>
S
In stock
|
1 pcs / 40 pcs |
4,2192 EUR
/ pcs
5,1053 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
507813 |
>
S
In stock
|
1 pcs / 100 pcs |
0,3893 EUR
/ pcs
0,4711 EUR incl. VAT
|
|
|
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
531292 |
>
O
On demand
|
1 pcs / 10 pcs |
12,442 EUR
/ pcs
15,0548 EUR incl. VAT
|
|
