StrongLumio motion switch PIR 12-24V 4A Mini

Product range code 343040
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per pcs
14,5994 EUR 17,6652 EUR incl. VAT
> S In stock
Buy
Brand
Strong
Group code
11000303
Unit (piece)
pcs
Divisibility
1 pcs
Packaging
10 pcs
Description and parameters

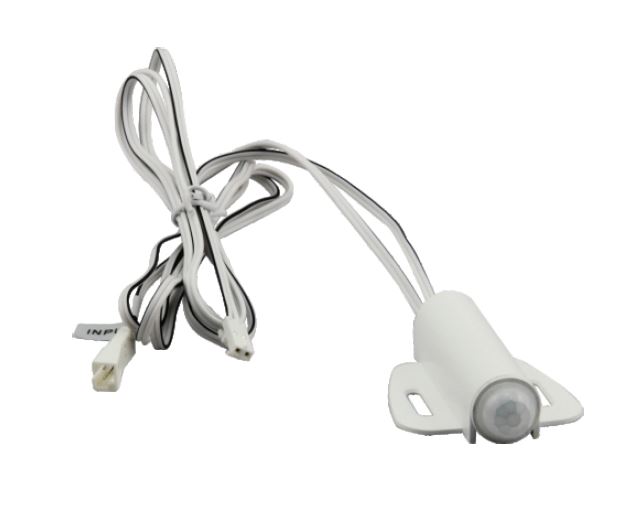

Motion sensor.
Used to control lighting when motion is detected. Possibilities of connection and use see assembly instructions below. When movement is detected, the lighting switches on, after 40s of no movement it switches off. The sensor records the temperature difference, which means that if an object with the same temperature moves, it may not detect the difference and may not turn on the lighting. The switch can be installed using 2 screws, or removed from the holder and installed in the hole in the edge • The maximum range is 2 m.
Voltage: 12 V / 24 V DC - direct current
Maximum current: 4 A
Maximum switching power: 48W (12V), 96W (24V)
Connector type: MINI
Installation

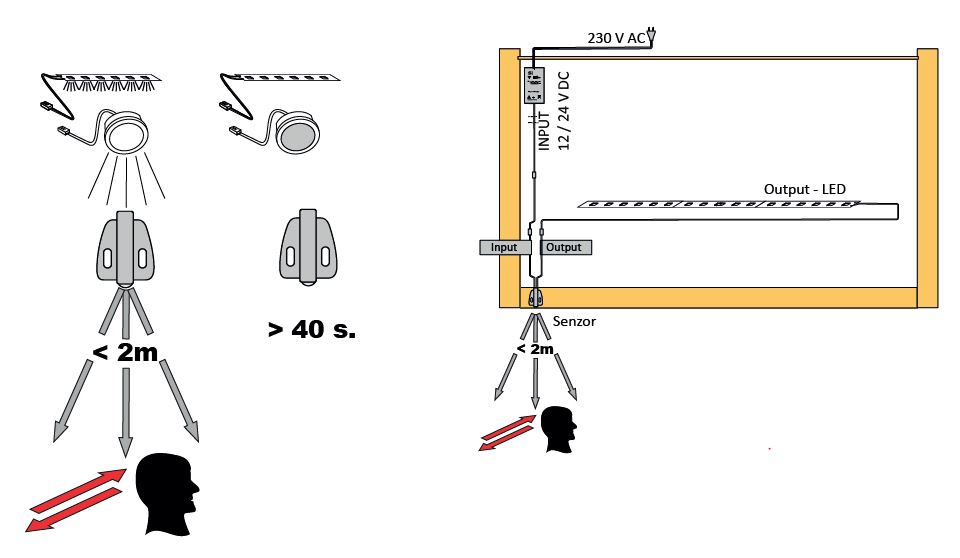

First turn off the power supply to the transformer. Screw the switch to a suitable place, as close as possible to the door leaf so that after opening there is a free space in front of the sensor. 10 cm. It can also be used behind a translucent glass door, the sensor does not react. Connect the cable labeled OUTPUT to the light, LED strip, etc.. Connect the cable labeled INPUT to the transformer / transformer switchboard. Only then connect the transformer to the power supply!
Caution, designed for 12 V or 24 V DC (direct current) voltage only. We recommend using the shortest possible cables due to losses and possible heating.
Setting the delay or intensity is not possible.

Product details on the catalog page.

Parameters

Parameter Value
Maximum power (W) 48/96
Output voltage (V) 12/24
Type of sensor_LED Motion
