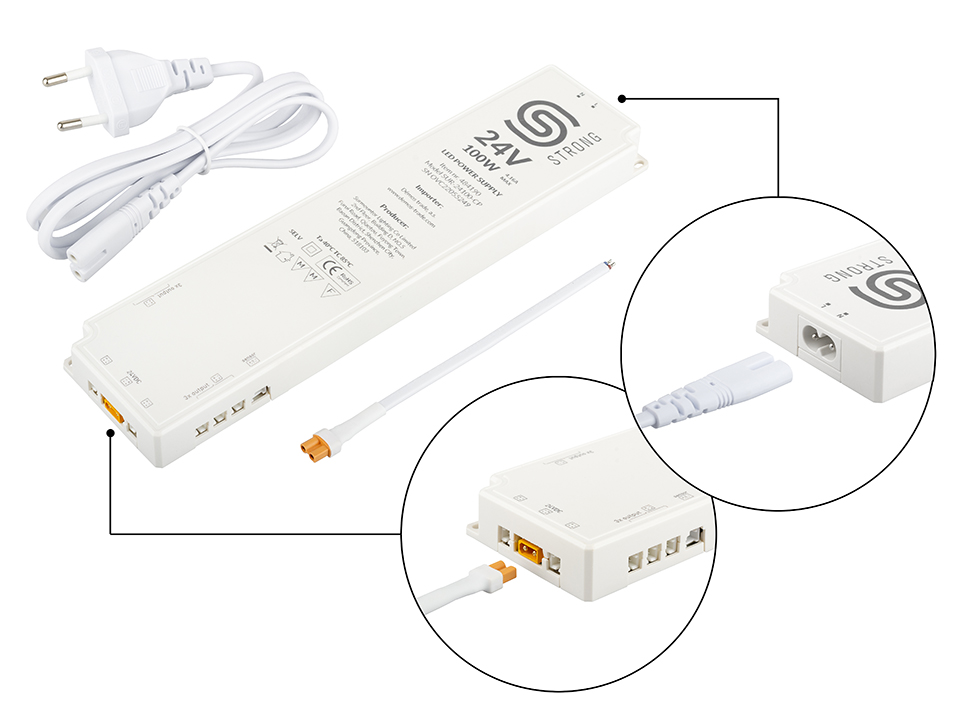

StrongLumio power supply 24V - 100 W (8x mini connector + 1x 3PIN connector)
The StrongLumio power supplies with integrated hub and 3PIN socket for sensor/switch connection aim to simplify the installation of lighting in a furniture corpus, to reduce installation time and thus make overall manipulation with StrongLumio lights more pleasant.
3PIN switches/dimmers - see Related product range (accessories)- are connected directly to a special 3PIN socket in the transformer body. The switchers / dimmers ensure switching on/off or dimming of all connected LED strips/spotlights (equipped with a Mini connector) at the same time. This makes lighting installation very easy. To the Mini connectors (4 to 8 depending on transformer power; capacity can be expanded with 356328 StrongLumio LED distributor 6x Mini connector Mini 0,25m) simply connect LED strips equipped with connecting cable (285094 StrongLumio connecting cable 1,8m Mini connector) or spot lights, to the 3PIN connector labeled SENSOR connect one of the offered switches/sensors.
The power supply power must be higher than the power consumption of the lights, the recommended reserve compared to the power consumption of the LED source is 20%, for continuous lighting (min, 8h/day) we recommend to increase the reserve up to 30%.
Example of calculation of a suitable power supply (LED strip of 12W/m - length 3 meters):
3 × 12 W = 36 W (LED strip consumption)
36 × 1.2 = 43.2 W (minimum power supply)
36 × 1,3 = 46,8 W (minimum power supply for longer illumination). In general, the higher the reserve, the longer the life of the power supply (transformer)
To power a 3m LED strip with 12W/m output, a power supply with a minimum output power of 43.2W (46.8W) is required.
The power supply should be at least 0.5 m away from other electrical appliances. Place so as to ensure sufficient ventilation - heat dissipation.

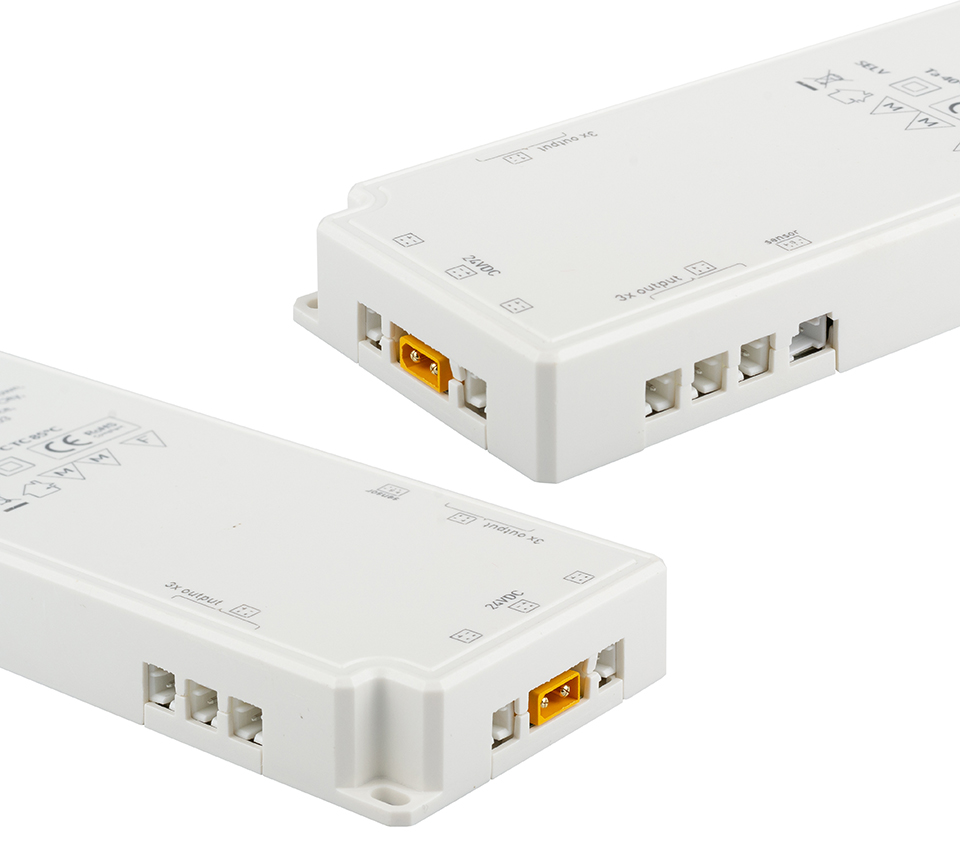

Output voltage - 24V. Max. power - 100W. Max. output current - 4,16A. Number of Mini outputs - 8. XT 30 socket - yes. Dimensions in mm - 265 x 65 x 19. Warning - LED strip plugged into XT 30 socket cannot be controlled by 3PIN switch/sensor.Warning - LED strip plugged into XT 30 socket cannot be controlled by 3PIN switch/sensor.
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Maximum power (W) | 100 |
| Output voltage (V) | 24 |
| Protection level | IP20 |
