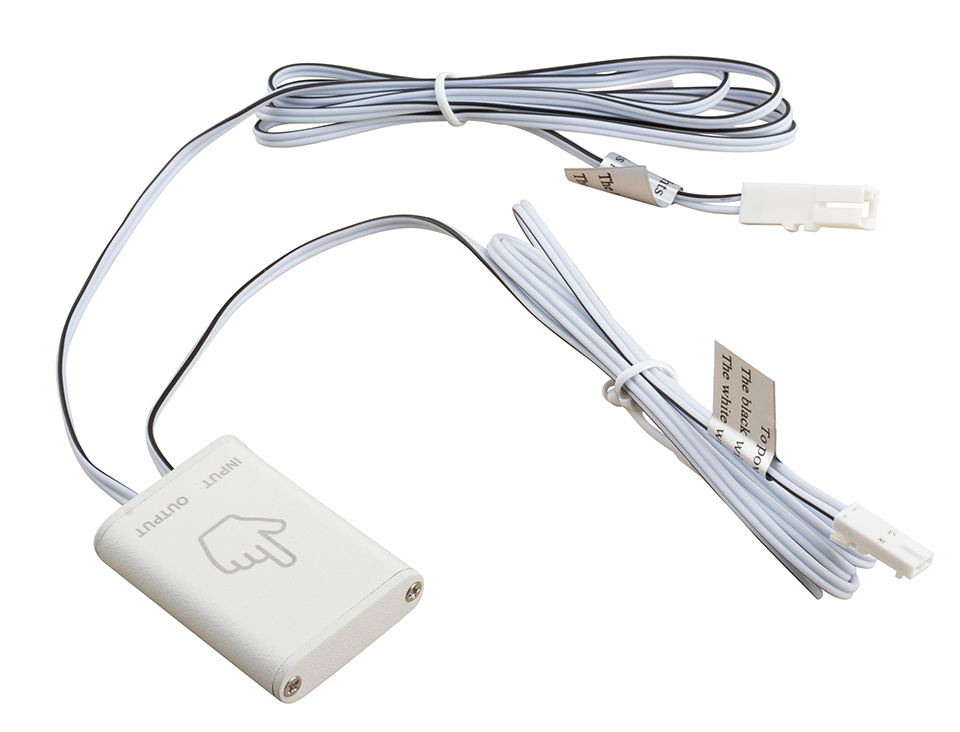

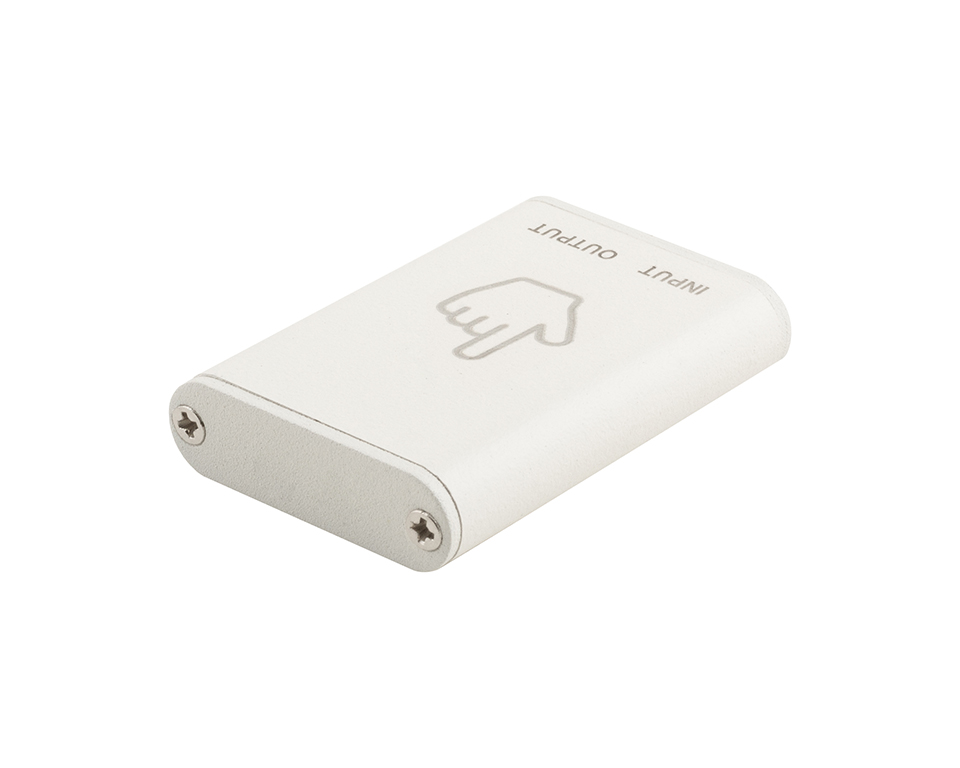

StrongLumio surface switch/dimmer 12-24V 4A white Mini connectors
Touch switch / dimmer.
We turn the lighting on with a touch, turn it off with a second touch. A long touch will set the lighting intensity. The set intensity will remain even after switching off. Possibilities of connection and use see installation instructions below. In the event of a power failure, the default level will be set to 100%.
Voltage 12 V / 24 V DC (direct current)
Max. switching current 4 A
Maximum switching power: 48W (12V), 96W (24V)
Dimensions: 43 x 31 x 9 mm
Surface mounting using 3M tape
Connector type: MINI. Cable length - 2x 1m. 285110 TM-extension cable 1.8m MINI connector can be used for extension. Installation
First, turn off the power supply to the transformer. The switch sticks in place. Connect the cable labeled OUTPUT to the light, LED strip, etc.. Connect the cable labeled INPUT to the transformer / transformer switchboard. Only then connect the transformer to the power supply!
Attention, only intended for voltage 12 V or 24 V DC (direct current). We recommend using the shortest possible cables due to losses and possible heating. Do not wind longer cables into a ball, coil, etc., leave them loosely stretched. To connect the sensor/switch with one LED strip, you must use the Mini connection cable - 285094 TM-connection cable 1.8 m MINI connector. In the case of connecting several LED strips or points (max. 6 pcs., cable with Mini connector) to one sensor/switch, it is necessary to use the switchboard 356328 SAL - switchboard LED 6x MINI - MINI connector 0.25m. To connect one sensor to the Strong transformer, it is necessary to use the connection cable 342541 STR-prop.kabel kul.kon (Jack)-MINI (female). To connect 2 - 6 sensors to one Strong transformer, it is necessary to use the switchboard 285093 SAL-switchboard LED 6x MINI connector - Jack 0.25m.
Product details on the catalog page.
Related documents
Assembly instructionsParameters
Parameter | Value |
---|---|
Maximum power (W) | 48/96 |
Output voltage (V) | 12/24 |
Type of sensor_LED | Touch |
