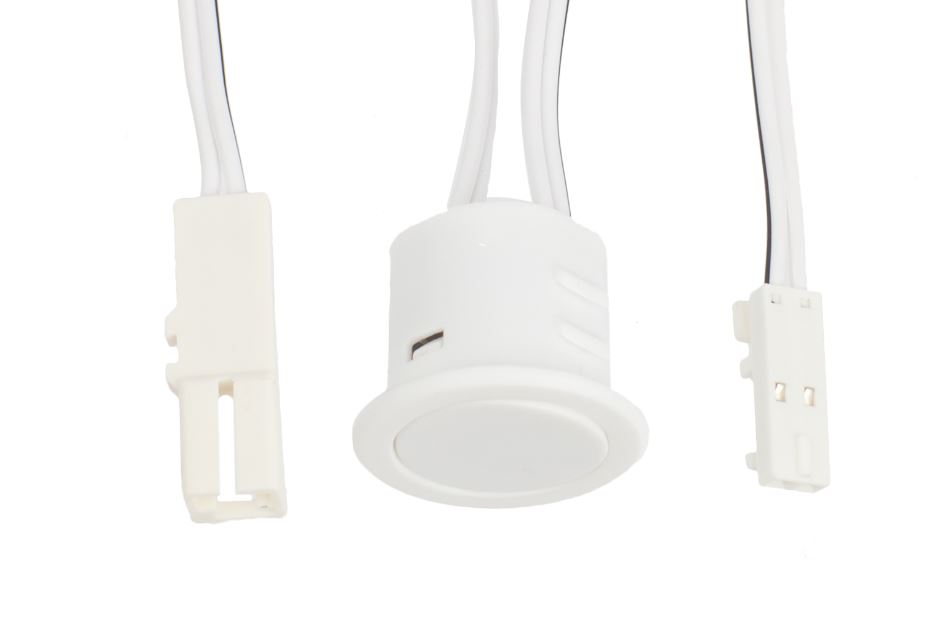

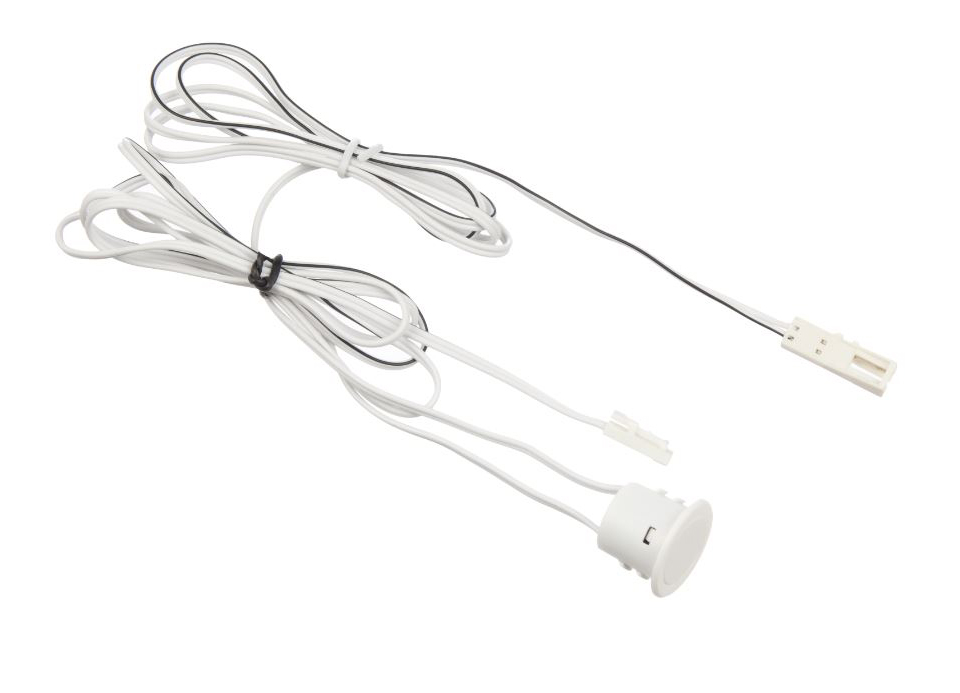

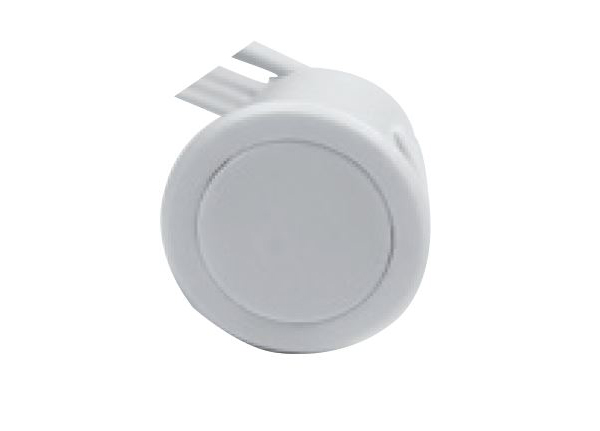

StrongLumio switch/dimmer 12-24V 4A white Mini connectors

Touch switch / dimmer.

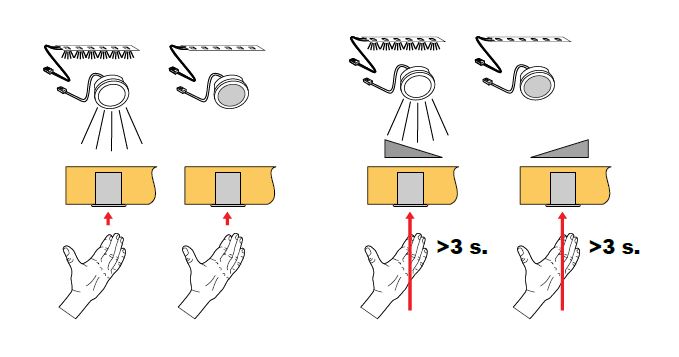

We turn the lighting on with a touch, turn it off with a second touch. A long touch will set the lighting intensity. The set intensity will remain even after switching off. Possibilities of connection and use see installation instructions below. In the event of a power failure, the default level will be set to 100%. Material - plastic.
Voltage 12 V / 24 V DC (direct current)
Max. switching current 4 A
Maximum switching power: 48W (12V), 96W (24V)
Dimensions: 22 x 17mm
Hole diameter: 18mm
Installation

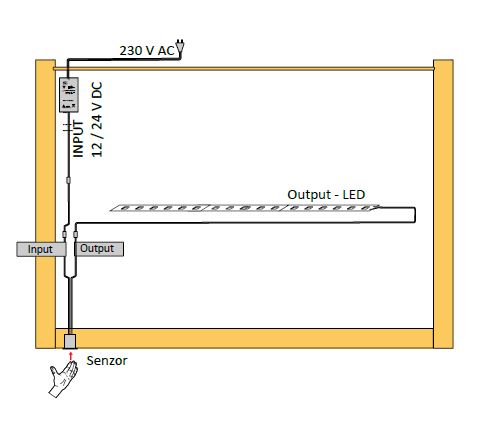

First turn off the power supply to the transformer. Insert the switch into the hole with a diameter of 18 mm. Connect the cable labeled OUTPUT to the light, LED strip, etc.. Connect the cable labeled INPUT to the transformer / transformer switchboard. Only then connect the transformer to the power supply!
Attention, only intended for voltage 12 V or 24 V DC (direct current). We recommend using the shortest possible cables due to losses and possible heating. Do not wind longer cables into a ball, coil, etc., leave them loosely stretched. To connect the sensor/switch with one LED strip, you must use the Mini connection cable - 285094 TM-connection cable 1.8 m MINI connector. In the case of connecting several LED strips or points (max. 6 pcs., cable with Mini connector) to one sensor/switch, it is necessary to use the switchboard 356328 SAL - switchboard LED 6x MINI - MINI connector 0.25m. To connect one sensor to the Strong transformer, it is necessary to use the connection cable 342541 STR-prop.kabel kul.kon (Jack)-MINI (female). To connect 2 - 6 sensors to one Strong transformer, it is necessary to use the switchboard 285093 SAL-switchboard LED 6x MINI connector - Jack 0.25m.
