StrongMax 16 121/400mm 40kg, black

Product range code 400351
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per set
10,0054 EUR 12,1065 EUR incl. VAT
> D Sale
Buy
Brand
Strong
Group code
1020050702
Unit (piece)
set
Divisibility
1 set
Packaging
1 set
Description and parameters

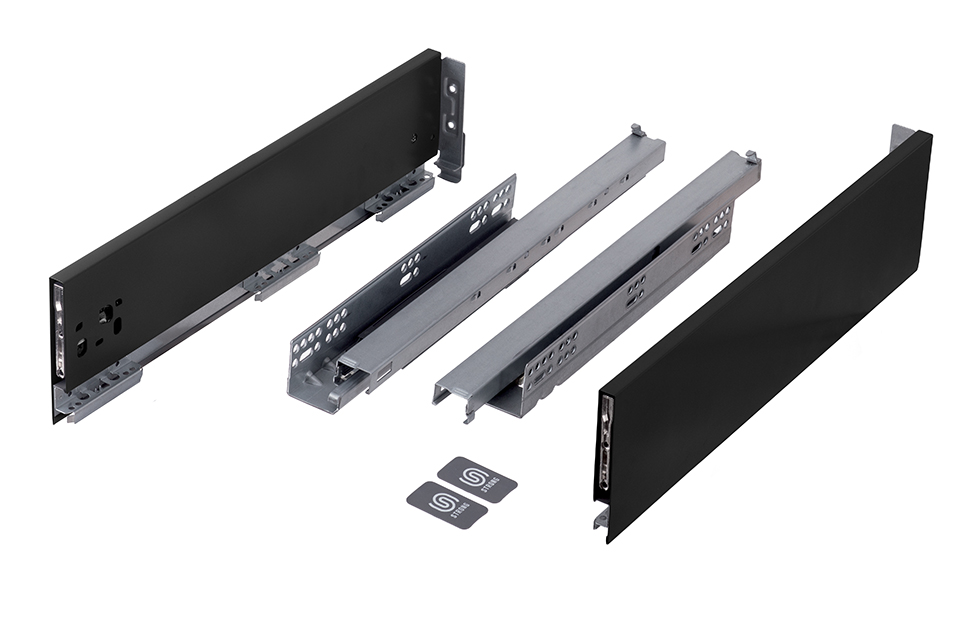

A complete kit for the manufacture of a drawer with a narrow (13mm) hollow sidewall and slides with soft-closing and internal synchronisation. Load capacity up to 40kg. Lifetime of slides minimum 50,000 cycles. Up/down and right/left front adjustment. Full drawer tilt adjustment at the rear of the sidewall (used to adjust the tilt of the front). For the production of the bottom and back, 16mm thick material must be used.

The set includes:

- a pair of damped slides
- a pair of side panels with integrated back brackets
- set of front brackets (clipped in the sidewall)
- pair of caps with STRONG logo print

Nominal length, sidewall height and colour see product name.

Alternatively, the StrongMax 18 box system can be used where 18mm thick material is used for the bottom and back. The accessories for the internal drawers are common to both systems. For drawers with a side height of 249mm, it is not possible to make a front for the inner drawer, it can be replaced by a classic front and moving the whole drawer inside the body by approx. 20mm.

Do vyprodání zásob

Parameters

Parameter Value
Colour Black
Headroom of drawer (mm) 143
Length (mm) 400
Load capacity (kg) 40
Movement of extended drawer With damping
Sidewall height (mm) 121
Alternatives
Title Code Availability Divisibility/
packaging
Basic price per unit
StrongMax 16 121/350mm 40kg, black StrongMax 16 121/350mm 40kg, black 400350
> D Sale
1 set / 1 set
9,5393 EUR
/ set
11,5426 EUR incl. VAT

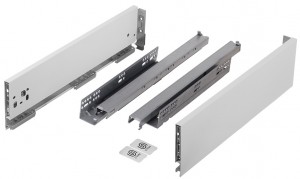

StrongMax 16 121/400mm 40kg, white StrongMax 16 121/400mm 40kg, white 334979
> O On demand
1 set / 1 set
28,79 EUR
/ set
34,8359 EUR incl. VAT

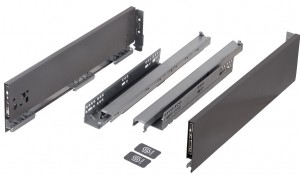

StrongMax 16 121/400mm 40kg, dark grey StrongMax 16 121/400mm 40kg, dark grey 335018
