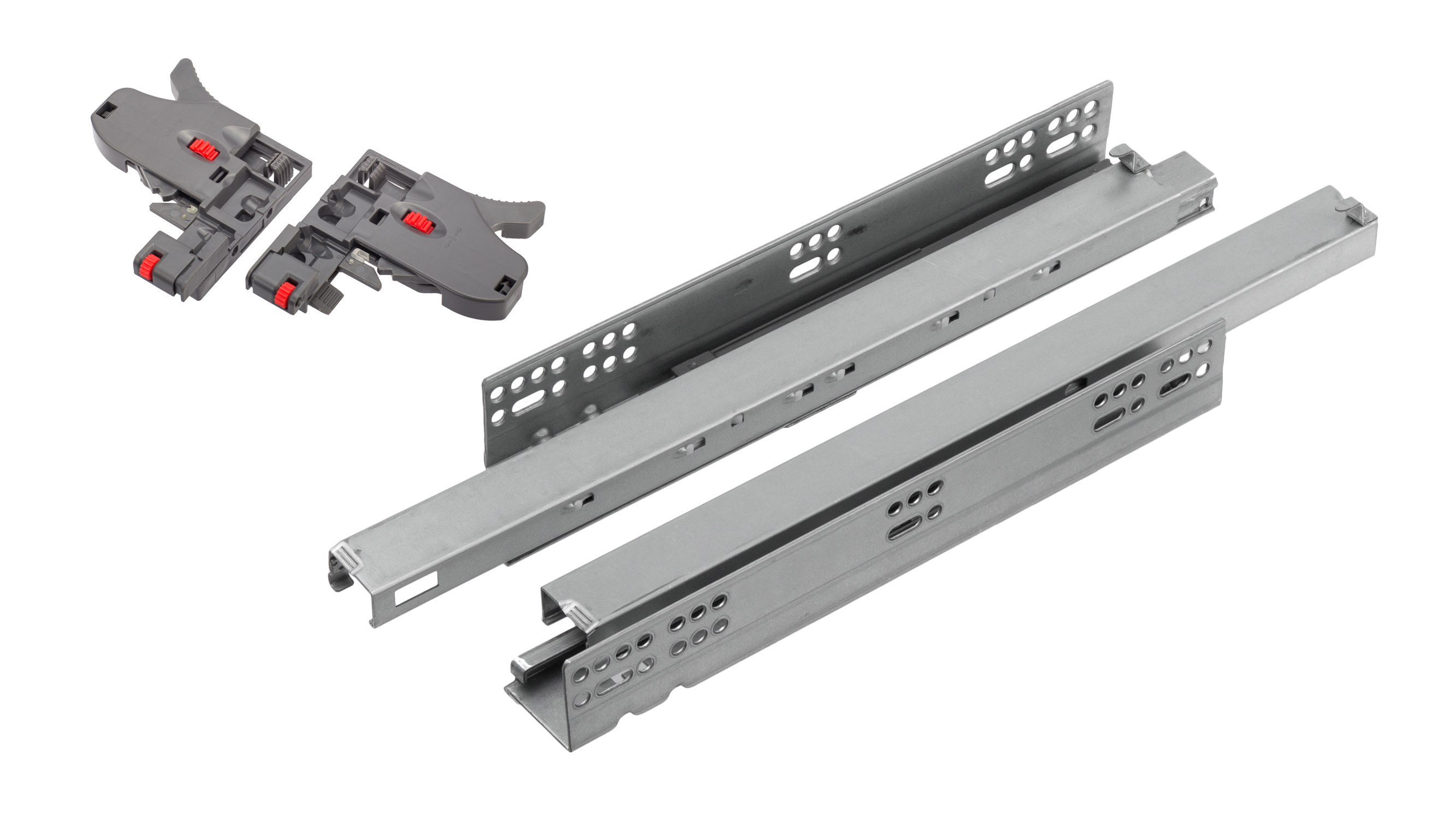

StrongRide synchro 3D full extension slide 550 mm with damping
Product range code
334996
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Hidden full extension slide for wooden drawers with synchronised centre section, including front holders. Material thickness for drawer construction up to 19mm. High stability, firm and smooth running of the slide along its entire length. Extremely long life of the slide even under full load (minimum 60,000 cycles).
Smart product: thanks to synchronisation, silent and stable slide, does not interfere with the appearance of the drawer when opened, allows adjustment in 3 directions
Drawer length = NL-10
Nominal length 550mm, load capacity 40kg.
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Length (mm) | 550 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping |
| Type of extension guide | Full extension slide |
