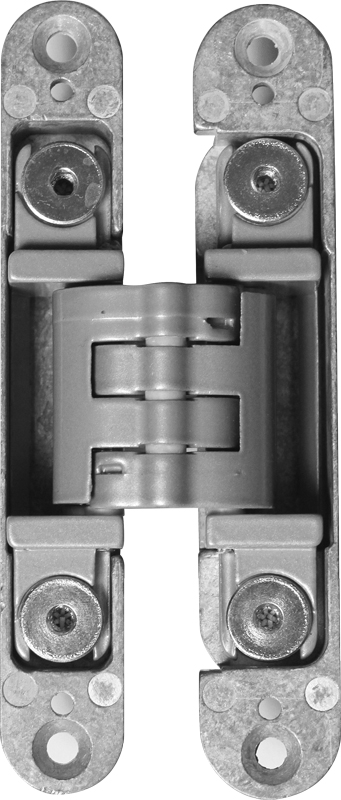

Symbio 22 hinge up to 40 kg matt chrome
Product range code
256674
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Door hinge for rebate-free doors, doors 40 kg, minimum door thickness 28 mm, Surface treatment: matt chrome. Adjustment in all three directions: height +/- 1.5 mm, right-left +/- 2 mm, front-rear +/- 1.5 mm.
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Colour | Matt chrome |
| Load capacity (kg) | 40 |
| Type of door hinge | Non-rebated |
