TERNO Base 28-set of fittings 2 wings 60kg with damping
Product range code
372278
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
- Base price per set
- 111,1474 EUR 134,4883 EUR incl. VAT
-
> O On demand
- Buy
- Brand
- Terno Scorrevoli
- Group code
- 10500201010105
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 1 set
Description and parameters

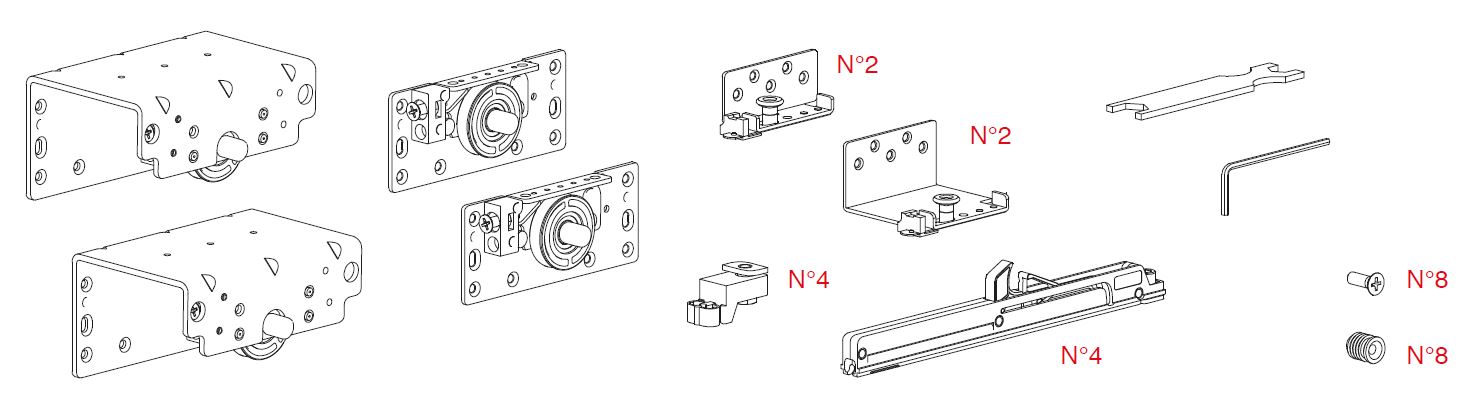

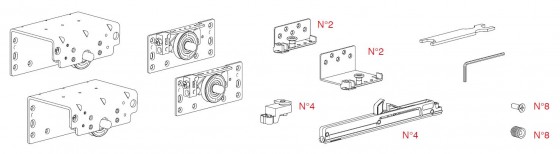

Fitting set for 2 wings including air dampers (4 pcs). Laminate thickness max. 28mm. Wing weight max. 40 kg. Min. wing width - 600mm. Please note that with this type of fitting, the wing is suspended outside the center of gravity and the wing may bend (generally applies to loaded systems). Reinforcements 351706 and 351707 - shortenable and DT157 - above a height of 2.3m - stronger design for higher stress are used to balance the tension.
Delivery time: 6 weeks
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Fill (mm) | Max. 28 |
| Load capacity (kg) | 60 |
