TERNO Magic2/1800 fittings set for wooden doors with damping

Product range code 368394
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per set
282,4451 EUR 341,7585 EUR incl. VAT
> S In stock
Buy
Brand
Terno Scorrevoli
Group code
105001010201
Unit (piece)
set
Divisibility
1 set
Packaging
4 set
Description and parameters

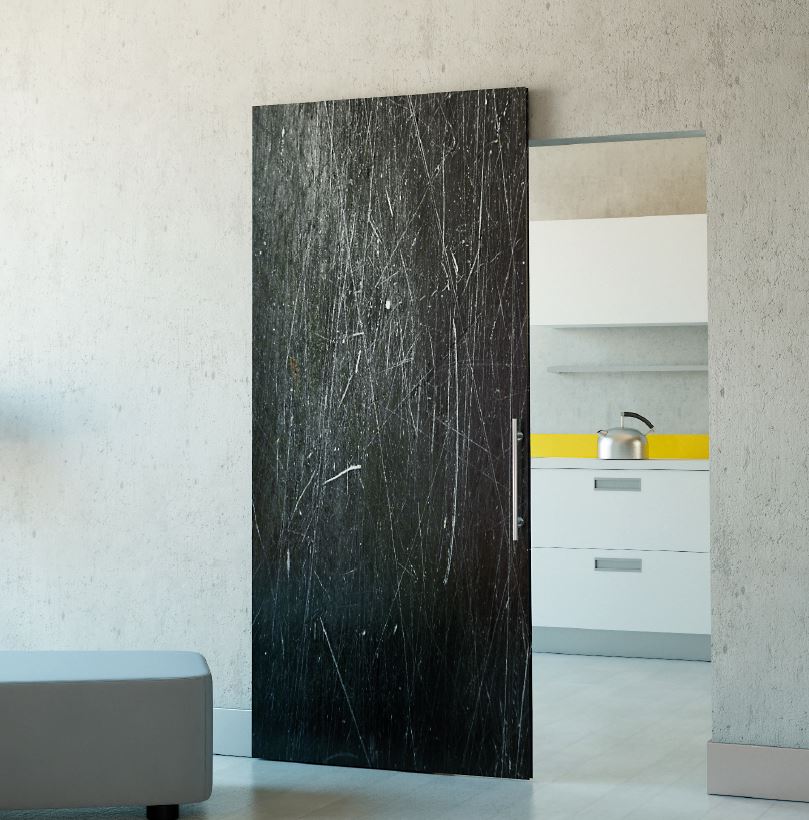

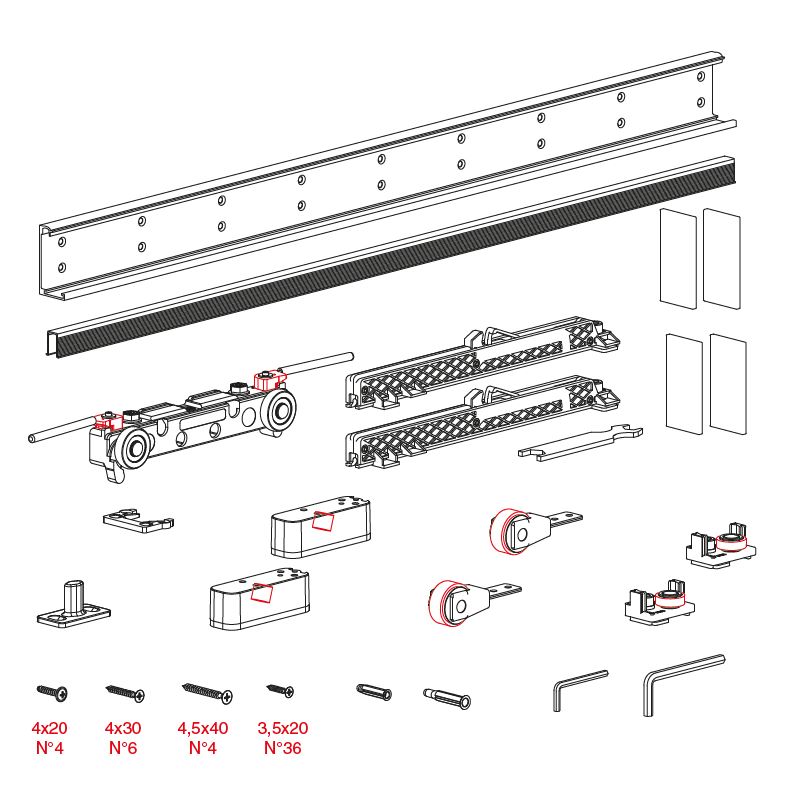

set of fittings that allows you to make a sliding door without a visible rail (in the open and closed state!).
Including two shock absorbers and including a 1800 mm guide bar.
The guide rail is installed in the door leaf, the upper guide carriage is always hidden behind the door leaf.
Right-left version
. A solid and level floor is a condition for proper function. Smaller irregularities are cushioned by undercarriage.
When milling, the minimum thickness of the rest of the milled part should be 20mm, the total thickness of the door min. 35-40mm.
For sash width 680 - 1800mm.
Max. load capacity 80 kg.
The lower wheels are equipped with a spring.
Not suitable for use on carpet. If necessary, it can be solved by inserting a bar on which the lower carriages will ride. 30 mm. Magic2 - what is different from the original version: • extension of the damping path by 20 mm to 50 mm, • adjustable dampers, • better protection of the door against any contact with the wall, • the possibility of horizontal and vertical, micrometric adjustment without the need to remove the door from the guide rail , • improved protection against the door falling out of the guide profile, • the lower wheels are larger, with larger diameter and bearings. the thickness of the rubber has been doubled, • quieter operation, • door width 680 – 1800 mm, • installation possible without the side covers of the guide profile. Replacement carriage set for older version of fittings - 422052 TERNO Magic set of lower carriages for older version of Magic fittings.

Product details on the manufacturer's website.

Related documents

Assembly instructions

Parameters

Parameter Value
Damping Yes
Leaf loading (kg) 80
Leaf thickness (mm) 35 - 50
Length of guide (mm) 1,800
Type of guide Hidden
