TERNO Star 22 fitting set 22 - 25mm 2 wings with damping 80kg
Product range code
380389
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
- Base price per set
- 166,2764 EUR 201,1945 EUR incl. VAT
-
> O On demand
- Buy
- Brand
- Terno Scorrevoli
- Group code
- 10500201010105
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 1 set
Description and parameters

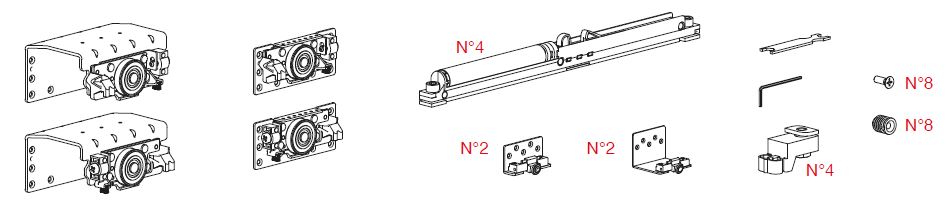

Fitting set for 2 wings including air dampers (4 pcs). Laminate thickness max. 25mm. For wing weight 40 - 80 kg. Min. wing width - 600mm. Please note that with this type of fitting, the wing is suspended outside the center of gravity and the wing may bend (generally applies to loaded systems). Reinforcements 88040 - shortenable and DT157 - above a height of 2.3m - stronger design for higher stress are used to equalize the tension (cat. 2014 p. 5.80).
Delivery time: 6-8 weeks
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Fill (mm) | 22 - 25 |
