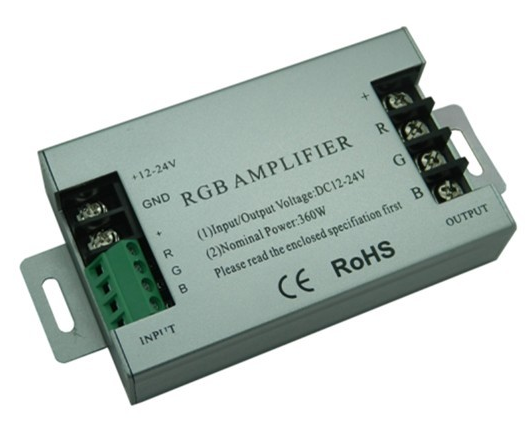

TL-amplifier RGB signal AMP5

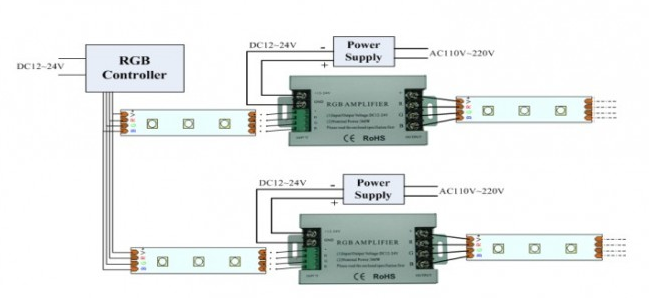

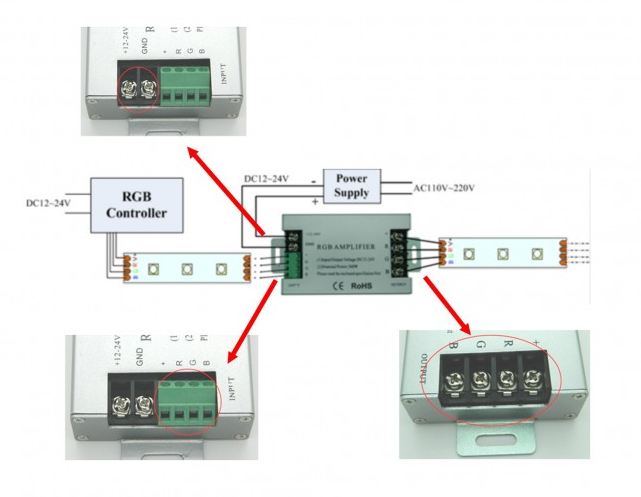

Three-channel RGB signal amplifier for RGB LED strips and modules. It serves to extend the performance of LED drivers beyond their permissible load. (For example, by connecting an amplifier to a controller with a maximum load of 72W, you add another section of 360W. Attention, the values do not add up. You can only connect the recommended load to the amplifier.) Can also be used to amplify the signal of single-color LED strips. You use a common + on the input, for a common minus you connect the RGB input terminal block, connect the outputs separately, each output separately - do not connect. Input voltage 12-24 VDC. Load 3 x 10A / 12V 360W / 24v 720W. Input/output connection - screw terminal block. Dimensions 130 x 65 x 25mm.
Delivery time: 10 days
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Determination of remote controller | RGB |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
299726 |
>
O
On demand
|
1 pcs / 1 pcs |
21,0884 EUR
/ pcs
25,5169 EUR incl. VAT
|
|
