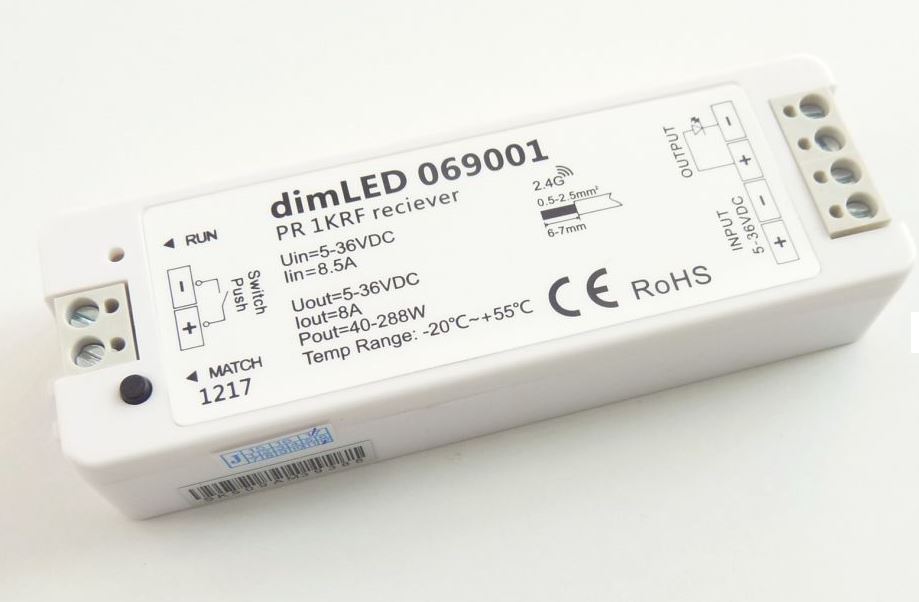

TL-receiver dimLED PR 1KRF

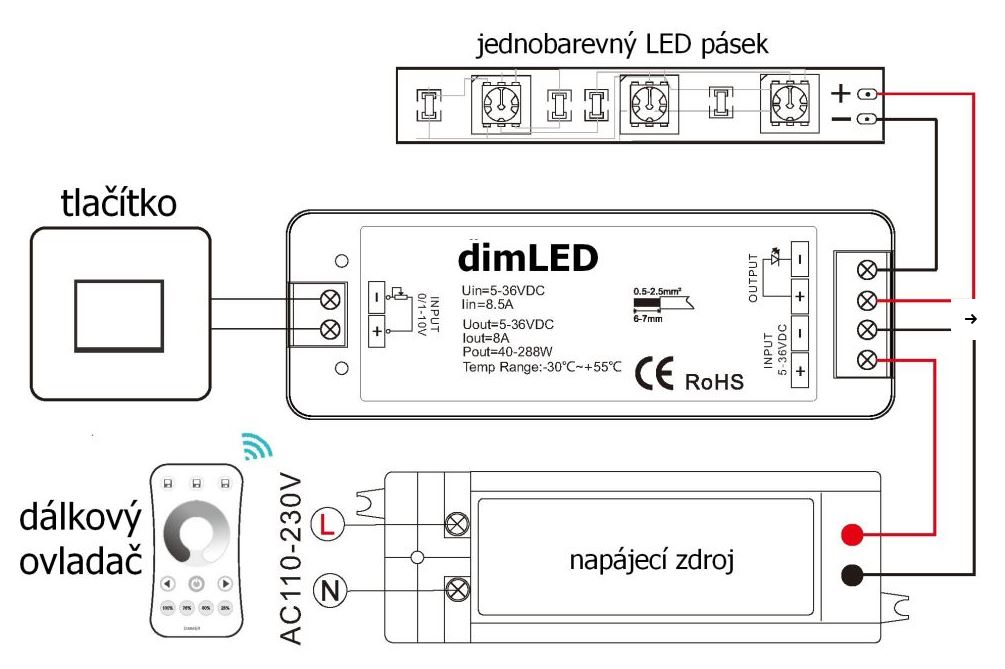

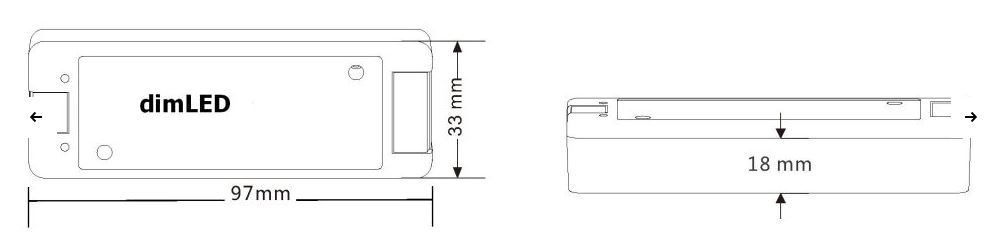

Radio frequency receiver dimmer for LED products. The receiver can be hidden (behind a wall, plasterboard or in a cabinet), direct visibility of the receiver for the controller is not necessary. The receiver is compatible with dimLED series controllers !!! The receiver has a connector for connecting a button, which can be used to manually control the receiver. The receiver can therefore be controlled both remotely and manually, for example with a button. To control multiple circuits, it is necessary to use one receiver for each circuit. Up to 10 different controllers of the dimLED series can be paired to each receiver and thus controlled from several locations. In the event of interruption and then reconnection of the power supply (for example, by interruption of the power source), this receiver has a memory of the intensity setting (the intensity of the light will return to the last set). Receiver specifications: Input voltage 5-36VDC Current load 1x8A (12V 96W, 24V 192W) Transmission frequency 2.4GHz Range 30m to 100m Number of controllers Max. 10 pcs can be paired to 1 receiver Dimensions 97 x 33 x 18mm Last setting memory after power off: YES
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Determination of remote controller | White LED tape |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
359916 |
>
S
In stock
|
1 pcs / 1 pcs |
20,5334 EUR
/ pcs
24,8454 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
411166 |
>
O
On demand
|
1 pcs / 1 pcs |
28,0263 EUR
/ pcs
33,9118 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
420157 |
>
O
On demand
|
1 pcs / 1 pcs |
20,5334 EUR
/ pcs
24,8454 EUR incl. VAT
|
|
|
|
