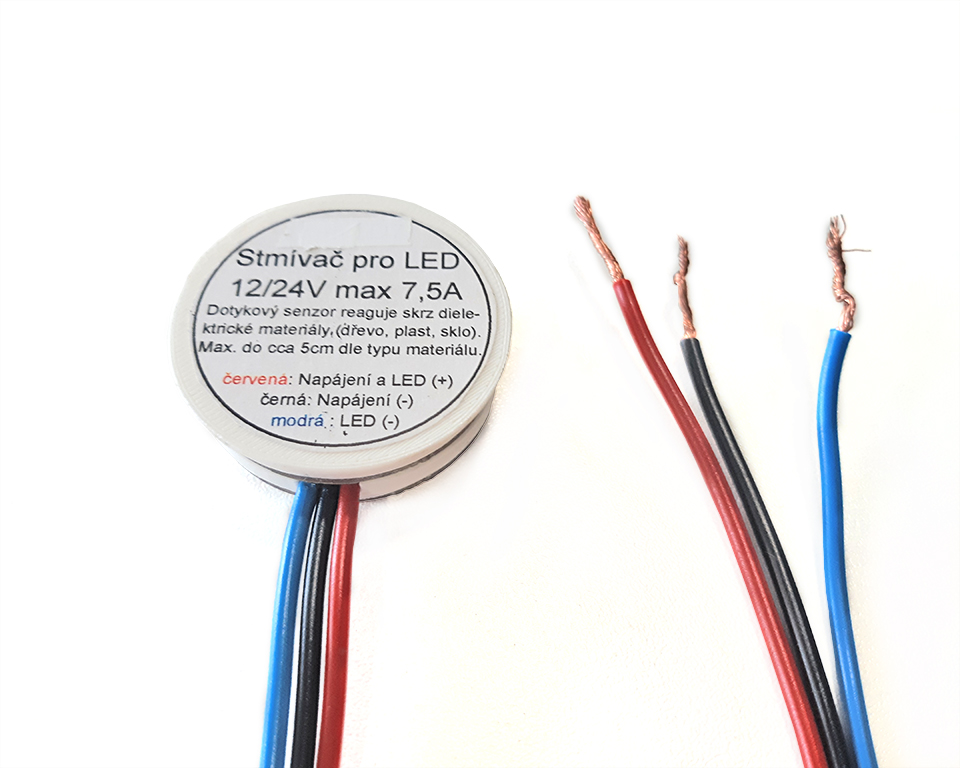

Touch / subsurface switch with dimmer 12/24V
Product range code
365878
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Alternatives
The touch dimmer allows easy insertion into the furniture into a 35mm hole. It reacts through dielectric materials such as wood, glass or plastic.
Sensitivity: solid wood up to thickness 5 cm, chipboard (laminate) - 2 cm.
Porous materials significantly reduce sensitivity, does not react through electrically conductive materials.
Side free terminals, 30 cm
Supply voltage 12V DC / 24V DC.
Max. current 10A @ 12V (120W), 7.5A @ 24V (180W).
Regulation range: 0 - 100%
Parameters
| Parameter | Value |
|---|---|
| Maximum power (W) | 120/180 |
| Output voltage (V) | 12/24 |
| Type of sensor_LED | Touch |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
405198 |
>
S
In stock
|
1 pcs / 1 pcs |
16,9353 EUR
/ pcs
20,4917 EUR incl. VAT
|
|
