WC Hinge left (screws) H70 18 mm (without screws)

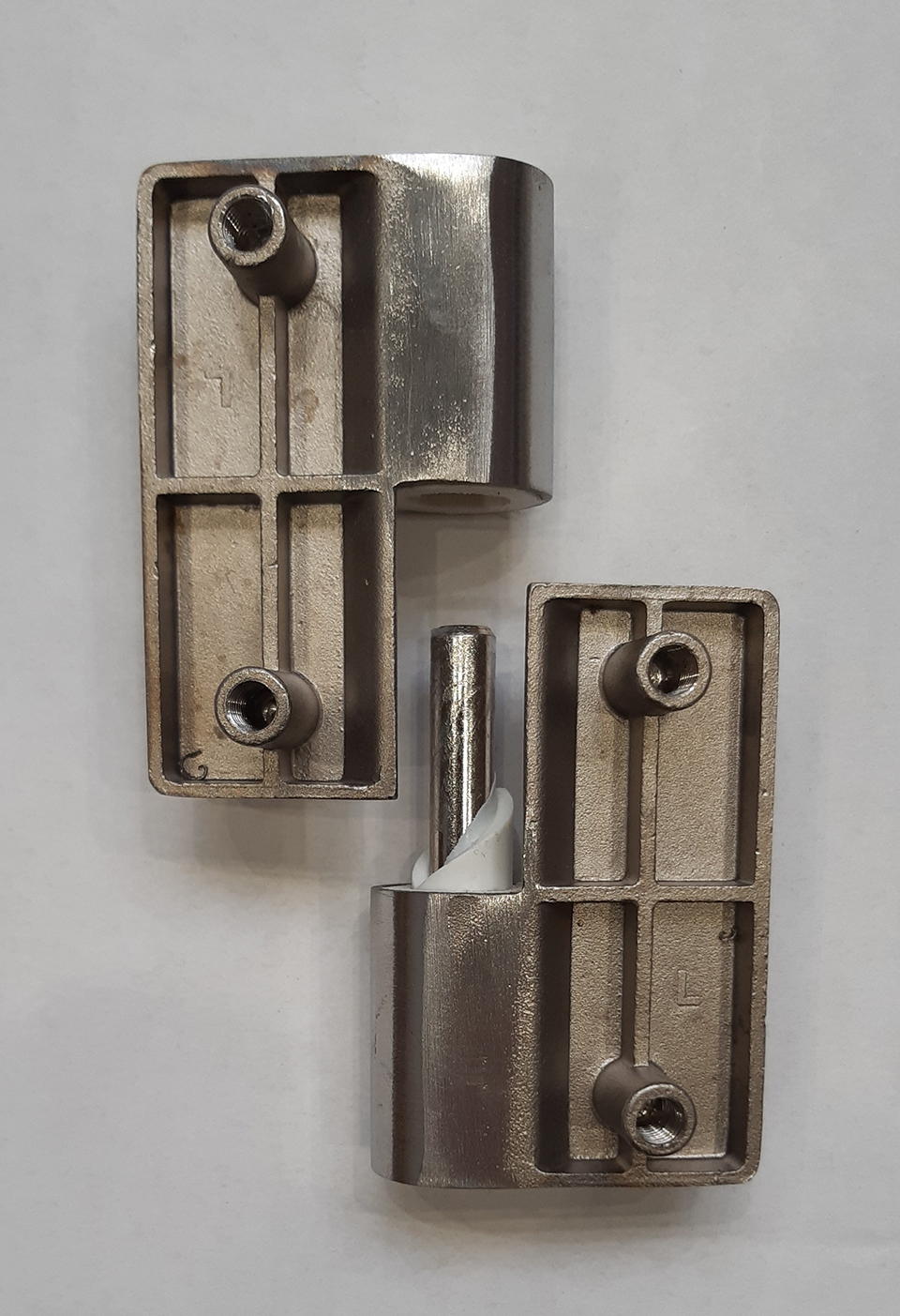

Self-closing left hinge with through-mounting on pins and M6 screws. For boards with a thickness of 18 mm. Standard use for doors opening outside the cabin.
Parameters:
- height 70mm
- width 70mm
- outer diameter of the hinge pin 23mm
- vertical spacing of mounting holes approx. 51mm
- horizontal spacing of mounting holes approx. 41mm
- outer diameter of threaded mounting studs 9mm
- mounting on M6 screws
Screws for material thickness 18mm are not included. Including screws can be ordered under the set code 340564.
TIP

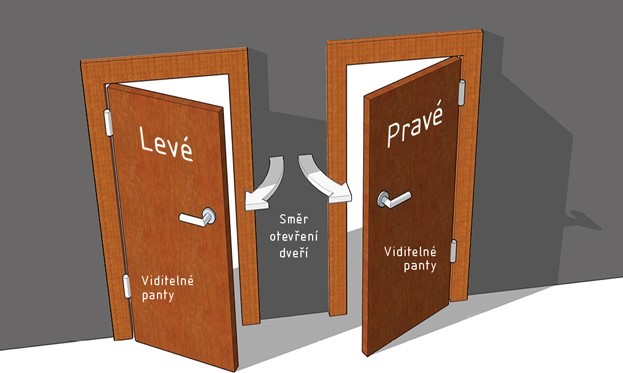

In case of a request to open the door inside the cabin, it is necessary to mount the closer on the "frame" plate from the inside and mount the hinges on the inside booths. It is necessary to solve the blocking of the outward opening - an externally mounted door stop (ideally riveted or mounted with a screw through), resting the door leaf on the upper frame profile, etc. The inward opening is blocked by a closer mounted on the inside of the frame.
